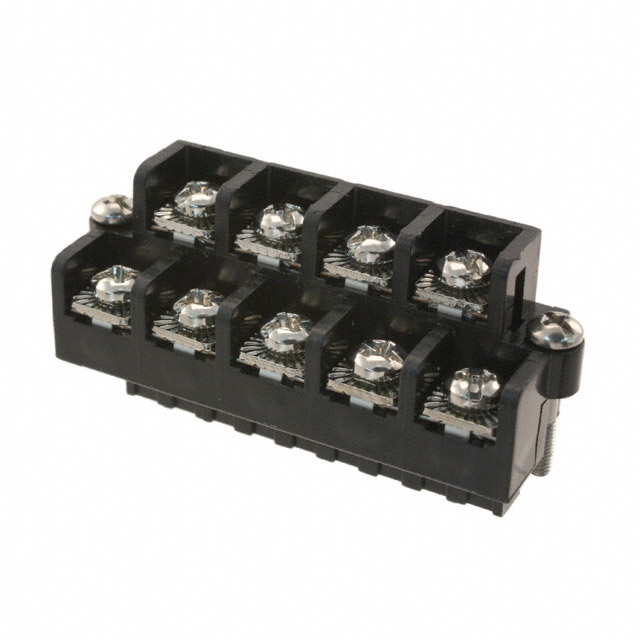

Images are for reference only. See Product Specifications for product details
Amphenol Pcd FXPT09200E
TERM BLOCK PLUG 9POS 5.08MM
- Manufacturer
- Amphenol Pcd
- Datasheet
- Price
- 8.4
- Stock
- 18
- Description
- TERM BLOCK PLUG 9POS 5.08MM
Product Details
- Voltage - UL
- 600V
- Ingress Protection
- -
- Current - IEC
- 24A
- Contact Tail Length
- -
- Mounting Type
- Free Hanging (In-Line)
- Dielectric Material
- Polyamide (PA), Nylon
- Type
- Plug, Female Sockets
- Voltage - IEC
- 500V
- Number of Positions
- 8
- Color
- Gray
- Torque - Screw
- 0.5-0.6 Nm (4.4-5.3 Lb-In)
- Positions Per Level
- 8
- Pitch
- -
- Plug Wire Entry
- 90°
- Contact Mating Finish
- -
- Series
- CLIPLINE COMBI UPBV
- Contact Material
- -
- Operating Temperature
- -
- Features
- -
- Number of Levels
- 1
- Wire Gauge or Range - AWG
- 12-26 AWG
- Packaging
- Bulk
- Insulation Height
- 1.850" (47.00mm)
- Wire Gauge or Range - mm²
- 0.14-4mm²
- Screw Size
- M3
- Termination Style
- Screw
- Material Flammability Rating
- UL94 V-0
- Part Status
- Active
- Wire Strip Length
- 9mm
- Current - UL
- 20A
- Header Orientation
- -
