CUI, Inc. CMS-151135-078L100-67

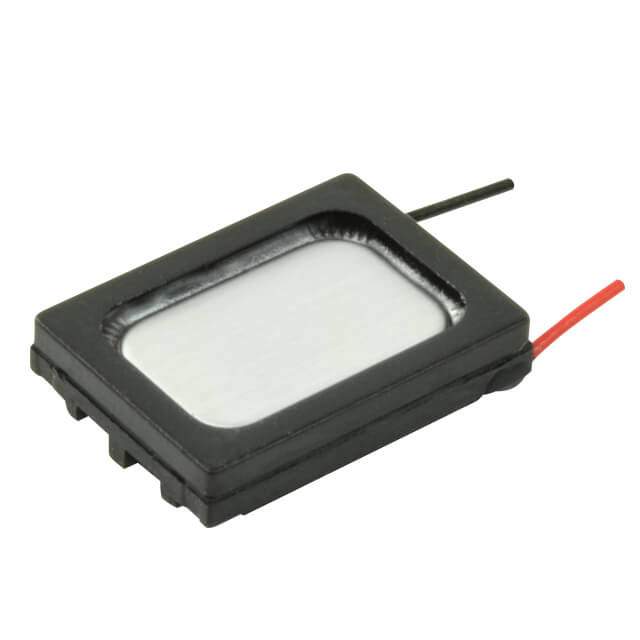

SPEAKER, 15 X 11 MM, 3.5 MM DEEP
- Manufacturer
- CUI, Inc.
- Datasheet
- Price
- 1.27
- Stock
- 100
Product Details
- Technology
- Magnetic
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Part Status
- Active
- Efficiency - Testing
- 700mW/100mm
- Power - Max
- 1W
- Height - Seated (Max)
- 0.098" (2.50mm)
- Termination
- Wire Leads
- Frequency - Self Resonant
- 550Hz
- Port Location
- Top
- Power - Rated
- 700mW
- Frequency Range
- 100Hz ~ 20kHz
- Material - Cone
- Polyester, Polyethylene Terephthalate (PET)
- Type
- General Purpose
- Efficiency - dBA
- 90.00
- Shape
- Rectangular
- Size / Dimension
- 0.630" L x 0.354" W (16.00mm x 9.00mm)
- Series
- CMS
- Efficiency - Type
- Sound Pressure Level (SPL)
- Impedance
- 8 Ohms
- Material - Magnet
- Nd-Fe-B
