Images are for reference only. See Product Specifications for product details

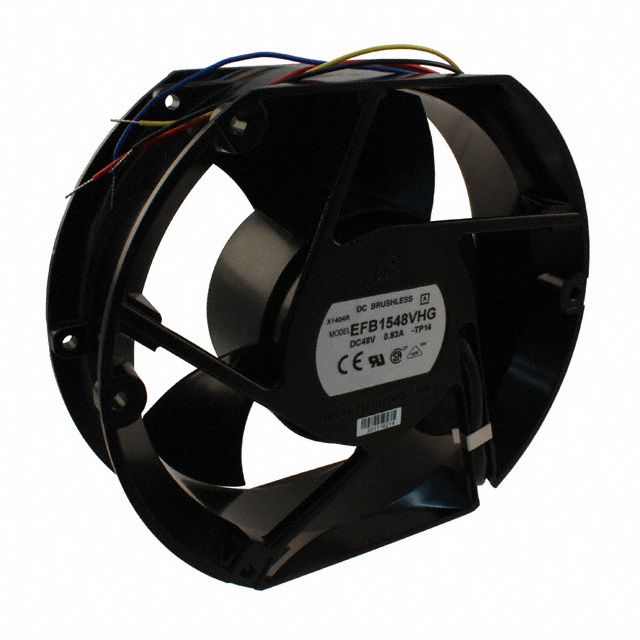

Delta Electronics EFB1548VHG-TP14
FAN AXIAL 172X50.8MM 48VDC WIRE
- Manufacturer
- Delta Electronics
- Datasheet
- Price
- 78.54
- Stock
- 100
Product Details
- Bearing Type
- Ball
- RPM
- 4700 RPM
- Power (Watts)
- 93.6W
- Noise
- 73.0 dB(A)
- Voltage Range
- 36 ~ 55.2VDC
- Width
- 69.00mm
- Static Pressure
- 3.550 in H2O (885.0 Pa)
- Series
- San Ace C175
- Voltage - Rated
- 48VDC
- Weight
- 1.7 lbs (771.1 g)
- Lifetime @ Temp.
- 40000 Hrs @ 60°C
- Air Flow
- 494.7 CFM (13.85m³/min)
- Material - Blade
- Plastic
- Fan Type
- Motorized Impellers
- Material - Frame
- Aluminum
- Features
- Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
- Size / Dimension
- Round - 175mm Dia
- Approvals
- CSA, TUV, UL
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 1.95A
- Termination
- 4 Wire Leads
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
