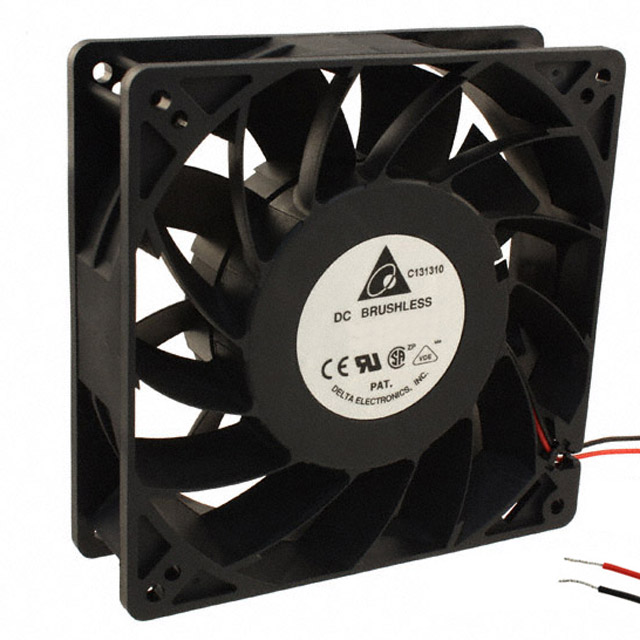

Delta Electronics FFB1324VHE-B

Product Details

Approvals

CSA, TUV, UR

Current Rating (Amps)

3.2A

Part Status

Active

Operating Temperature

14 ~ 140°F (-10 ~ 60°C)

Termination

4 Wire Leads

Bearing Type

Ball

RPM

11500 Front, 7000 Rear

Voltage Range

10.8 ~ 13.2VDC

Noise

66.0 dB(A)

Static Pressure

2.210 in H2O (550.5 Pa)

Width

76.00mm

Voltage - Rated

12VDC

Series

San Ace 60

Lifetime @ Temp.

40000 Hrs @ 60°C

Weight

0.507 lb (229.97 g)

Material - Blade

Plastic

Air Flow

79.8 CFM (2.23m³/min)

Material - Frame

Plastic

Fan Type

Tubeaxial

Size / Dimension

Square - 60mm L x 60mm H

Features

Counter-Rotating, PWM Control, Speed Sensor (Tach)

Ingress Protection

-
