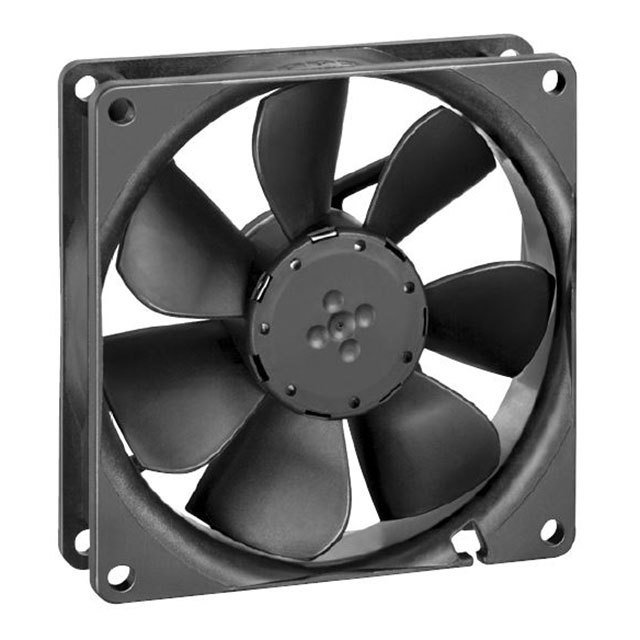

ebm-papst Inc. 3412NME

Product Details

RPM

4200 RPM

Power (Watts)

18.20W

Noise

54.0 dB(A)

Voltage Range

10 ~ 27.6VDC

Width

38.00mm

Static Pressure

0.650 in H2O (161.9 Pa)

Series

PMD

Voltage - Rated

24VDC

Weight

0.728 lb (330.22 g)

Lifetime @ Temp.

-

Air Flow

190.0 CFM (5.32m³/min)

Material - Blade

Polybutylene Terephthalate (PBT)

Fan Type

Tubeaxial

Material - Frame

Polybutylene Terephthalate (PBT)

Features

-

Size / Dimension

Square - 120mm L x 120mm H

Approvals

CE, CUR, TUV, UL

Ingress Protection

-

Part Status

Active

Current Rating (Amps)

0.760A

Termination

2 Wire Leads

Operating Temperature

14 ~ 158°F (-10 ~ 70°C)

Bearing Type

Ball
