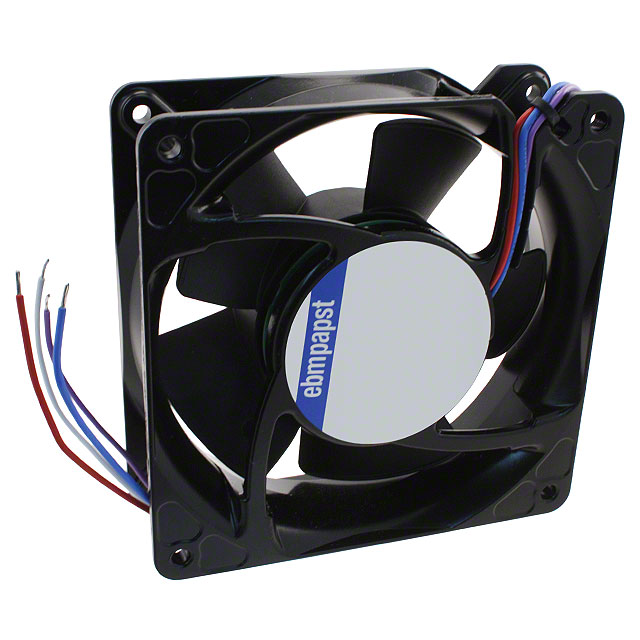

ebm-papst Inc. 4114N/2H6P

Product Details

Width

50.80mm

Static Pressure

-

Series

6400

Voltage - Rated

48VDC

Weight

1.7 lbs (771.1 g)

Lifetime @ Temp.

75000 Hrs @ 40°C

Air Flow

241.3 CFM (6.76m³/min)

Material - Blade

Polyamide (PA), Nylon, Fiberglass Reinforced

Fan Type

Tubeaxial

Material - Frame

Aluminum

Features

-

Size / Dimension

Rectangular/Rounded - 172mm L x 150mm H

Approvals

-

Ingress Protection

-

Part Status

Active

Current Rating (Amps)

-

Termination

2 Terminals

Operating Temperature

-4 ~ 162°F (-20 ~ 72°C)

Bearing Type

Ball

RPM

3400 RPM

Power (Watts)

17.00W

Noise

57.0 dB(A)

Voltage Range

28 ~ 60VDC
