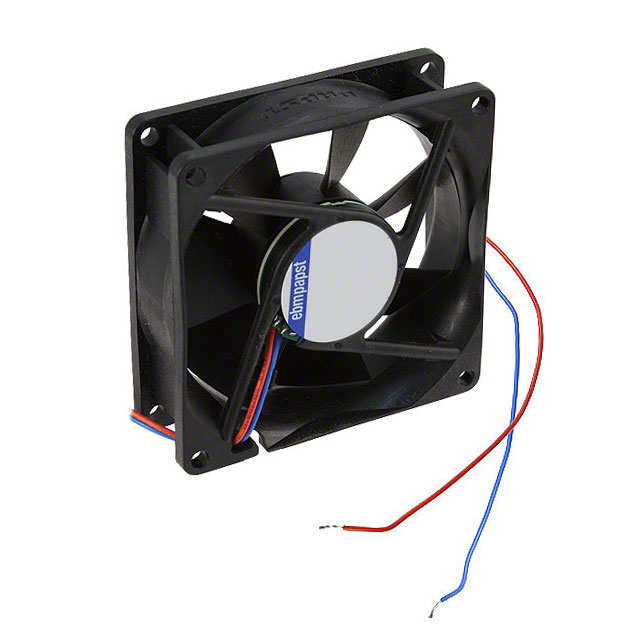

ebm-papst Inc. 8412NGMV

Product Details

Bearing Type

Sintec

RPM

3000 RPM

Power (Watts)

2.50W

Noise

36.0 dB(A)

Voltage Range

8 ~ 15VDC

Width

25.40mm

Static Pressure

-

Series

3400N

Voltage - Rated

12VDC

Weight

0.22 lb (99.79 g)

Lifetime @ Temp.

70000 Hrs @ 40°C

Air Flow

55.3 CFM (1.55m³/min)

Material - Blade

Polyamide (PA), Nylon, Fiberglass Reinforced

Fan Type

Tubeaxial

Material - Frame

Polybutylene Terephthalate (PBT), Fiberglass Reinforced

Features

-

Size / Dimension

Square - 92mm L x 92mm H

Approvals

CSA, UL, VDE

Ingress Protection

-

Part Status

Active

Current Rating (Amps)

-

Termination

2 Wire Leads

Operating Temperature

-4 ~ 158°F (-20 ~ 70°C)
