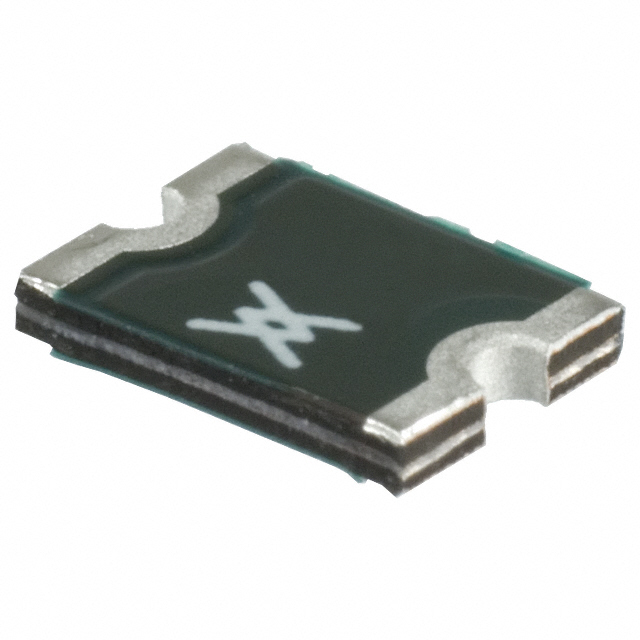

Images are for reference only. See Product Specifications for product details
Littelfuse Inc. MINISMDC075F/24-2
PTC RESET FUSE 24V 750MA 1812
- Manufacturer
- Littelfuse Inc.
- Datasheet
- Price
- 0
- Stock
- 23582
Product Details
- Lead Spacing
- -
- Current - Hold (Ih) (Max)
- 1.1A
- Time to Trip
- 500ms
- Resistance - Initial (Ri) (Min)
- 60 mOhms
- Current - Max
- 20A
- Resistance - Post Trip (R1) (Max)
- 180 mOhms
- Mounting Type
- Surface Mount
- Voltage - Max
- 24V
- Package / Case
- 1812 (4532 Metric), Concave
- Type
- Polymeric
- Thickness (Max)
- 0.033" (0.85mm)
- Series
- Multifuse®, MF-MSMF
- Base Part Number
- MF-MSMF
- Ratings
- AEC-Q200
- Size / Dimension
- 0.181" L x 0.128" W (4.60mm x 3.24mm)
- Approvals
- cURus, TUV
- Current - Trip (It)
- 2.2A
- Packaging
- Digi-Reel®
- Height - Seated (Max)
- -
- Part Status
- Active
- Operating Temperature
- -40°C ~ 85°C
