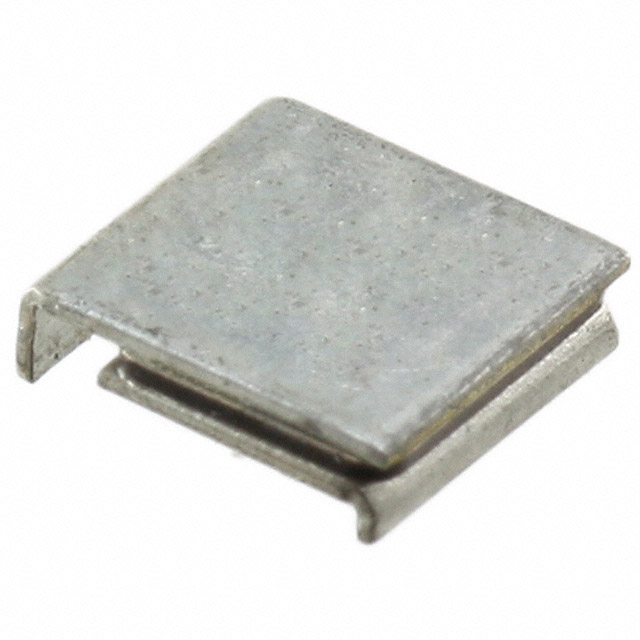

Images are for reference only. See Product Specifications for product details
Littelfuse Inc. SMD150F-2018-2
PTC RESET FUSE 15V 1.5A 2SMD
- Manufacturer
- Littelfuse Inc.
- Datasheet
- Price
- 0
- Stock
- 15491
Product Details
- Part Status
- Active
- Current - Hold (Ih) (Max)
- 1.1A
- Lead Spacing
- -
- Resistance - Initial (Ri) (Min)
- 100 mOhms
- Time to Trip
- 500ms
- Resistance - Post Trip (R1) (Max)
- 400 mOhms
- Current - Max
- 40A
- Mounting Type
- Surface Mount
- Voltage - Max
- 15V
- Package / Case
- 2-SMD
- Type
- Polymeric
- Thickness (Max)
- 0.060" (1.52mm)
- Series
- PolySwitch®, SMD
- Size / Dimension
- 0.200" L x 0.180" W (5.08mm x 4.58mm)
- Ratings
- -
- Current - Trip (It)
- 2.2A
- Approvals
- CSA, TUV, UL
- Height - Seated (Max)
- -
- Packaging
- Cut Tape (CT)
- Operating Temperature
- -40°C ~ 85°C
