Images are for reference only. See Product Specifications for product details

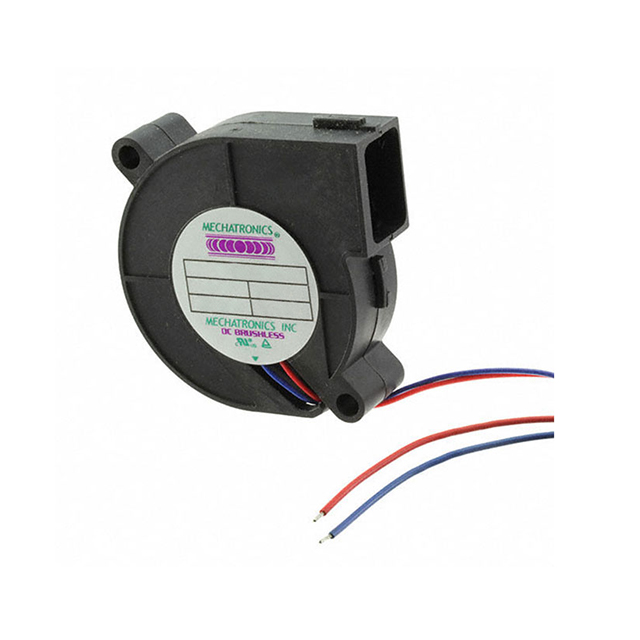

Mechatronics Fan Group B5015H12B-BSR-CC
FAN BLOWER 51X15.7MM 12VDC WIRE
- Manufacturer
- Mechatronics Fan Group
- Datasheet
- Price
- 10.04
- Stock
- 100
Product Details
- Part Status
- Active
- Operating Temperature
- -
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- RPM
- 6500 RPM
- Voltage Range
- -
- Noise
- 45.0 dB(A)
- Static Pressure
- 0.880 in H2O (219.2 Pa)
- Width
- 15.70mm
- Voltage - Rated
- 12VDC
- Series
- B5015
- Lifetime @ Temp.
- -
- Weight
- 0.055 lb (24.95 g)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Air Flow
- 5.0 CFM (0.140m³/min)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Fan Type
- Blower
- Size / Dimension
- Square/Rounded - 51mm L x 51mm H
- Features
- Conformal Coating, Thermal Overload Protector (TOP)
- Ingress Protection
- -
- Approvals
- CE, cUL, TUV, UL
- Current Rating (Amps)
- 0.300A
