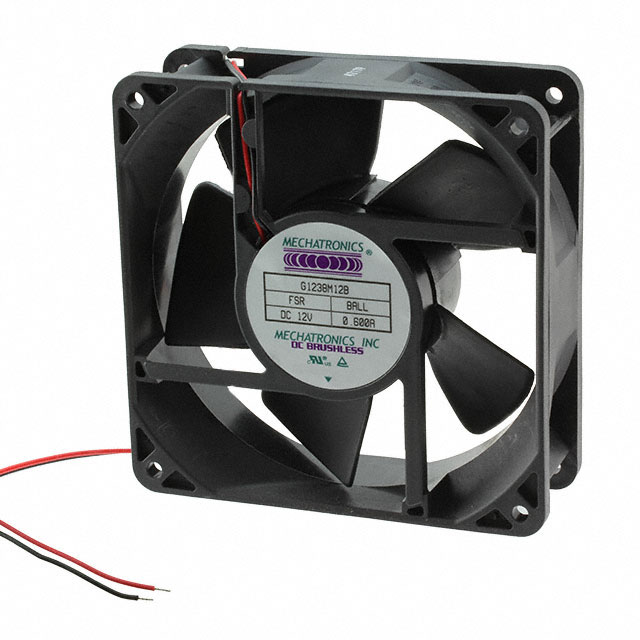

Images are for reference only. See Product Specifications for product details
Mechatronics Fan Group G1238L12B-FSR-EM
FAN AXIAL 120X38MM IP57 12VDC
- Manufacturer
- Mechatronics Fan Group
- Datasheet
- Price
- 16.13
- Stock
- 0
Product Details
- RPM
- 2400 RPM
- Voltage Range
- -
- Noise
- 38.0 dB(A)
- Static Pressure
- 0.240 in H2O (59.8 Pa)
- Width
- 38.00mm
- Voltage - Rated
- 24VDC
- Series
- G1238
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Weight
- 0.74 lb (335.66 g)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Air Flow
- 107.0 CFM (3.00m³/min)
- Size / Dimension
- Square - 119mm L x 119mm H
- Fan Type
- Tubeaxial
- Ingress Protection
- IP57 - Dust Protected, Waterproof
- Features
- Thermal Overload Protector (TOP)
- Current Rating (Amps)
- 0.250A
- Approvals
- CE, cUL, TUV, UL
- Operating Temperature
- -
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
