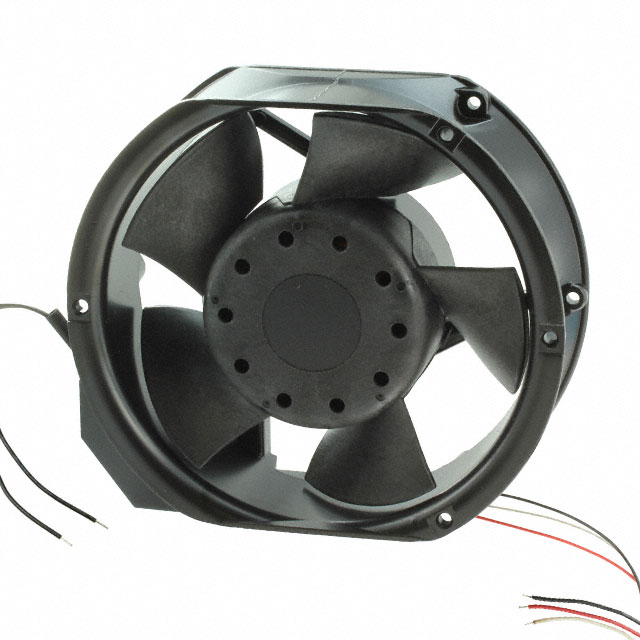

Images are for reference only. See Product Specifications for product details
Mechatronics Fan Group UF15KC12-BWHNSR-B1
FAN AXIAL 172X55MM 115VAC WIRE
- Manufacturer
- Mechatronics Fan Group
- Datasheet
- Price
- 72.47
- Stock
- 1
Product Details
- Air Flow
- 220.0 CFM (6.16m³/min)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Fan Type
- Tubeaxial
- Material - Frame
- Aluminum
- Features
- Electronic Commutation (EC), Thermal Overload Protector (TOP)
- Size / Dimension
- Rectangular/Rounded - 172mm L x 150mm H
- Approvals
- ATEX, CE, cURus, UR
- Ingress Protection
- IP68 - Dust Tight, Waterproof
- Part Status
- Active
- Current Rating (Amps)
- 0.230A
- Termination
- 2 Terminals
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 3000 RPM
- Power (Watts)
- 15.00W
- Noise
- 57.0 dB(A)
- Voltage Range
- 103 ~ 127VAC
- Width
- 51.00mm
- Static Pressure
- 0.620 in H2O (154.4 Pa)
- Series
- OA172EC
- Voltage - Rated
- 115VAC
- Weight
- 1.543 lb (700.0 g)
- Lifetime @ Temp.
- 50000 Hrs @ 40°C
