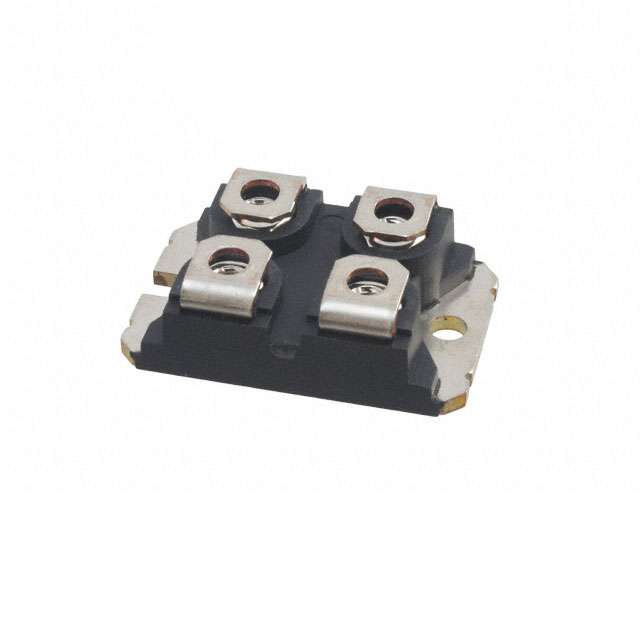

Images are for reference only. See Product Specifications for product details
Microsemi Corporation APT75GN120JDQ3G
IGBT 1200V 124A 379W SOT227
- Manufacturer
- Microsemi Corporation
- Datasheet
- Price
- 0.2
- Stock
- 10000
- Description
- IGBT 1200V 124A 379W SOT227
Product Details
- Vce(on) (Max) @ Vge, Ic
- 2.1V @ 15V, 75A
- Input
- Standard
- Current - Collector (Ic) (Max)
- 124A
- Series
- -
- Input Capacitance (Cies) @ Vce
- 4.8nF @ 25V
- IGBT Type
- Trench Field Stop
- Current - Collector Cutoff (Max)
- 100µA
- Part Status
- Obsolete
- Voltage - Collector Emitter Breakdown (Max)
- 1200V
- Power - Max
- 379W
- Configuration
- Single
- Mounting Type
- Chassis Mount
- NTC Thermistor
- No
- Package / Case
- ISOTOP
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Supplier Device Package
- ISOTOP®
