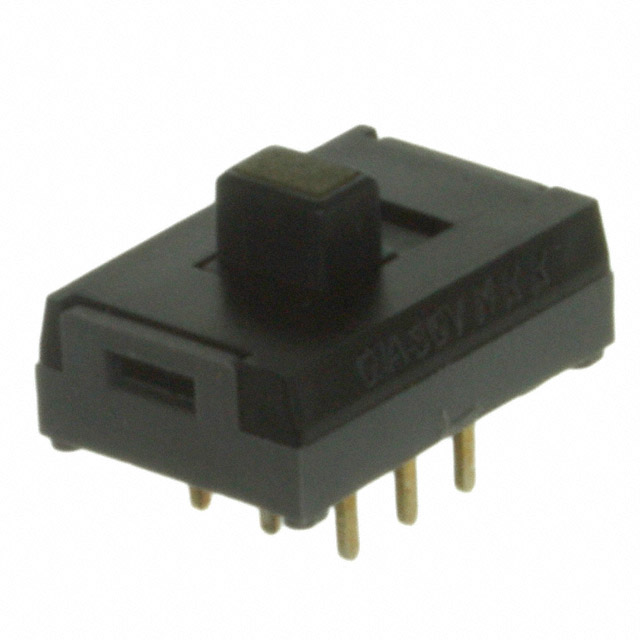

Images are for reference only. See Product Specifications for product details
NKK Switches SS22SDP2LE
SWITCH SLIDE DPDT 100MA 30V
- Manufacturer
- NKK Switches
- Datasheet
- Price
- 7.35
- Stock
- 9
Product Details
- Index Stops
- Fixed
- Termination Style
- Solder Lug
- Part Status
- Active
- Depth Behind Panel
- 12.19mm
- Actuator Type
- Flatted (3.17mm Dia)
- Number of Positions
- 2
- Mounting Type
- Panel Mount
- Voltage Rating - AC
- 115V
- Angle of Throw
- 30°
- Voltage Rating - DC
- 30V
- Contact Finish
- Silver
- Current Rating (Amps)
- 200mA (AC/DC)
- Contact Timing
- Non-Shorting (BBM)
- Panel Cutout Dimensions
- -
- Actuator Length
- 9.53mm
- Number of Poles per Deck
- 4
- Number of Decks
- 1
- Operating Force
- 2.520 ~ 6.481gfm
- Series
- 56
- Circuit per Deck
- 4PDT
- Features
- Shaft and Panel Sealed
- Contact Material
- Brass
