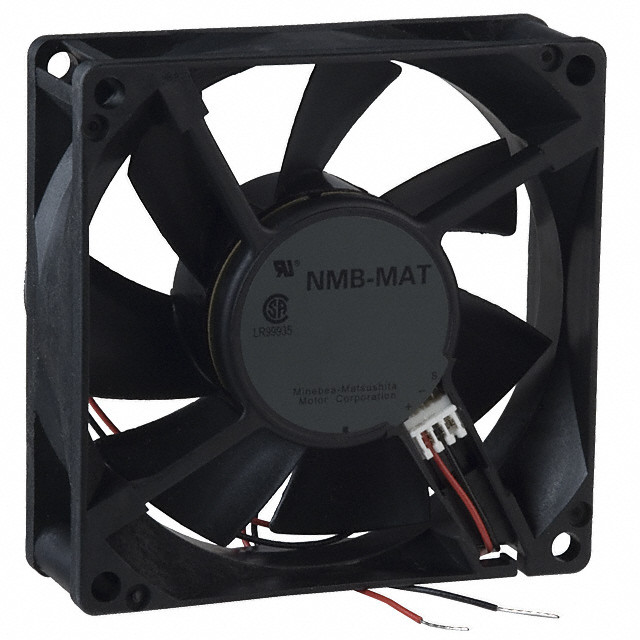

NMB Technologies Corporation FBA08A12L1AZ

Product Details

Bearing Type

Hydro-wave (HWB)

RPM

2950 RPM

Power (Watts)

2.08W

Noise

32.0 dB

Voltage Range

7 ~ 13.8VDC

Width

25.50mm

Static Pressure

0.149 in H2O (37.1 Pa)

Series

FBA

Voltage - Rated

12VDC

Weight

0.22 lb (99.79 g)

Lifetime @ Temp.

50000 Hrs @ 40°C

Air Flow

39.6 CFM (1.11m³/min)

Material - Blade

-

Fan Type

Tubeaxial

Material - Frame

-

Features

-

Size / Dimension

Square - 80mm L x 80mm H

Approvals

CSA, UL

Ingress Protection

-

Part Status

Obsolete

Current Rating (Amps)

0.173A

Termination

2 Wire Leads

Operating Temperature

14 ~ 158°F (-10 ~ 70°C)
