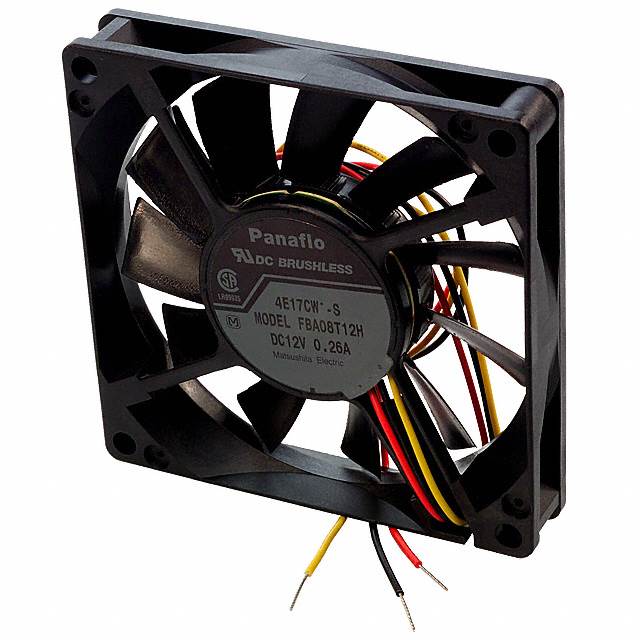

NMB Technologies Corporation FBA08T12HS

Product Details

Part Status

Obsolete

Current Rating (Amps)

0.430A

Termination

3 Wire Leads

Operating Temperature

14 ~ 158°F (-10 ~ 70°C)

Bearing Type

Hydro-wave (HWB)

RPM

3450 RPM

Power (Watts)

7.20W

Noise

43.0 dB

Voltage Range

14 ~ 27.6VDC

Width

25.50mm

Static Pressure

0.197 in H2O (49.0 Pa)

Series

FBA

Voltage - Rated

24VDC

Weight

0.243 lb (110.22 g)

Lifetime @ Temp.

50000 Hrs @ 40°C

Air Flow

68.8 CFM (1.93m³/min)

Material - Blade

-

Fan Type

Tubeaxial

Material - Frame

-

Features

Speed Sensor (Tach)

Size / Dimension

Square - 92mm L x 92mm H

Approvals

CSA, UL

Ingress Protection

-
