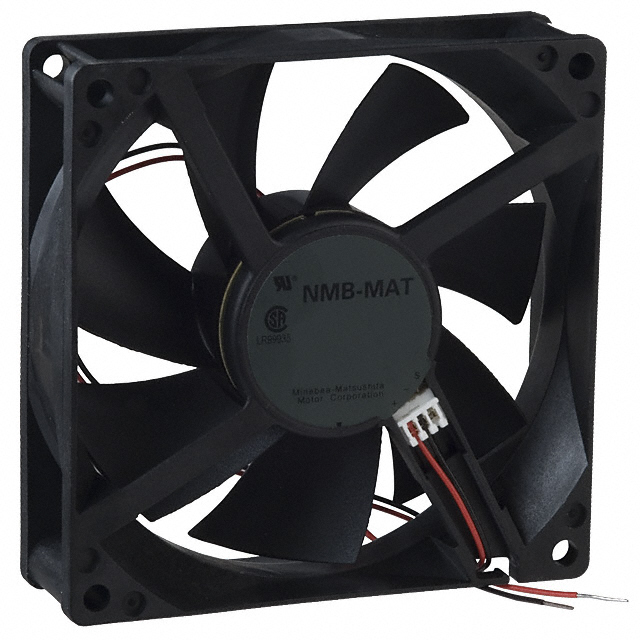

NMB Technologies Corporation FBA09A12H1AZ

Product Details

Part Status

Obsolete

Current Rating (Amps)

0.370A

Termination

2 Wire Leads

Operating Temperature

14 ~ 158°F (-10 ~ 70°C)

Bearing Type

Hydro-wave (HWB)

RPM

2500 RPM

Power (Watts)

4.44W

Noise

41.5 dB

Voltage Range

7 ~ 13.8VDC

Width

38.00mm

Static Pressure

0.268 in H2O (66.7 Pa)

Series

FBA

Voltage - Rated

12VDC

Weight

0.595 lb (269.89 g)

Lifetime @ Temp.

30000 Hrs @ 25°C

Air Flow

103.8 CFM (2.91m³/min)

Material - Blade

-

Fan Type

Tubeaxial

Material - Frame

-

Features

-

Size / Dimension

Square - 120mm L x 120mm H

Approvals

CSA, UL

Ingress Protection

-
