Images are for reference only. See Product Specifications for product details

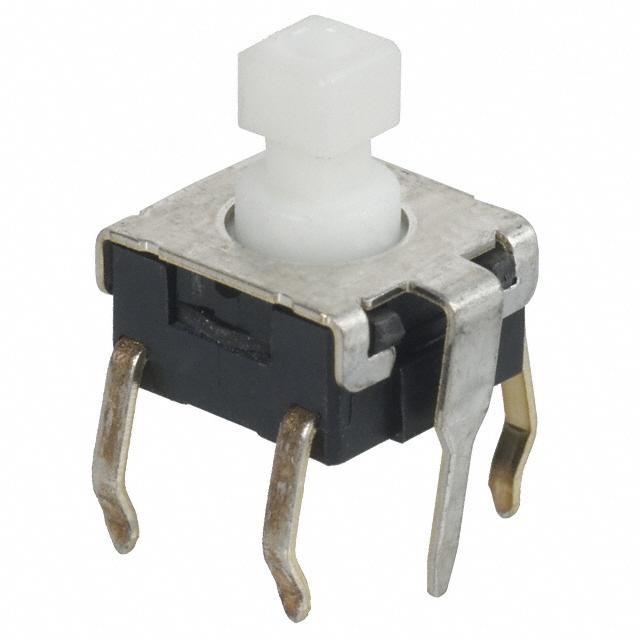

Omron Electronics Inc-EMC Div B3W-1150S
SWITCH TACTILE SPST-NO 0.05A 24V
- Manufacturer
- Omron Electronics Inc-EMC Div
- Datasheet
- Price
- 0
- Stock
- 0
Product Details
- Mechanical Life
- 3,000,000 Cycles
- Actuator Height off PCB, Vertical
- 4.30mm
- Operating Force
- 200gf
- Series
- B3W
- Switch Function
- Off-Mom
- Circuit
- SPST-NO
- Actuator Material
- -
- Outline
- 12.00mm x 12.00mm
- Termination Style
- PC Pin
- Features
- Grounding Pin, Sealed - Fully
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Packaging
- Bulk
- Actuator Orientation
- Top Actuated
- Part Status
- Obsolete
- Operating Temperature
- -25°C ~ 70°C
- Illumination
- Non-Illuminated
- Contact Rating @ Voltage
- 0.05A @ 24VDC
- Actuator Type
- Standard
- Illumination Type, Color
- -
- Mounting Type
- Through Hole
- Actuator Length, Right Angle
- -
- Switch Travel
- 0.30mm
- Illumination Voltage (Nominal)
- -
