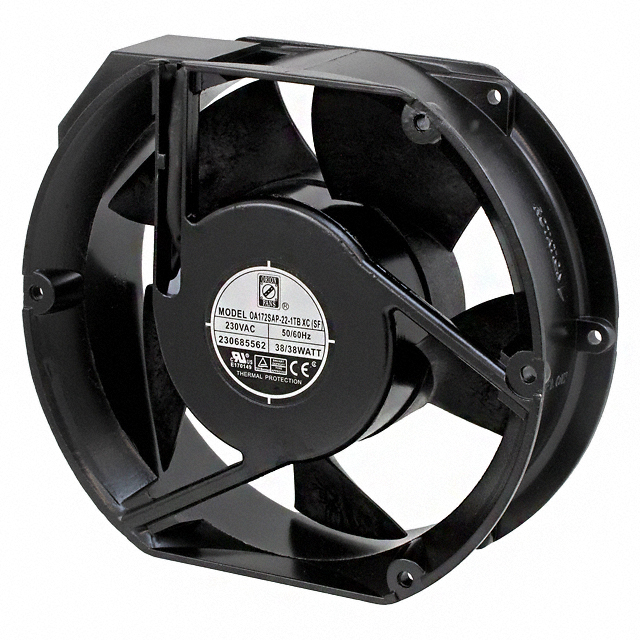

Images are for reference only. See Product Specifications for product details
Orion Fans OA172SAP-22-1TBXC(SF)
FAN AXIAL 172X55MM 230VAC TERM
- Manufacturer
- Orion Fans
- Datasheet
- Price
- 73.92
- Stock
- 8
Product Details
- RPM
- 2700 RPM
- Power (Watts)
- 72.0W
- Noise
- 63.0 dB(A)
- Voltage Range
- -
- Width
- 70.00mm
- Static Pressure
- 1.500 in H2O (373.6 Pa)
- Series
- UF190APA
- Voltage - Rated
- 230VAC
- Weight
- 3.2 lbs (1.5 kg)
- Lifetime @ Temp.
- -
- Air Flow
- 247.0 CFM (6.92m³/min)
- Material - Blade
- Polyamide (PA), Nylon
- Fan Type
- Motorized Impellers
- Material - Frame
- Aluminum
- Features
- Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
- Size / Dimension
- Round - 190mm Dia
- Approvals
- CE, cUL, TUV, UL
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.300A
- Termination
- 2 Wire Leads
- Operating Temperature
- -40 ~ 122°F (-40 ~ 50°C)
- Bearing Type
- Ball
