Images are for reference only. See Product Specifications for product details

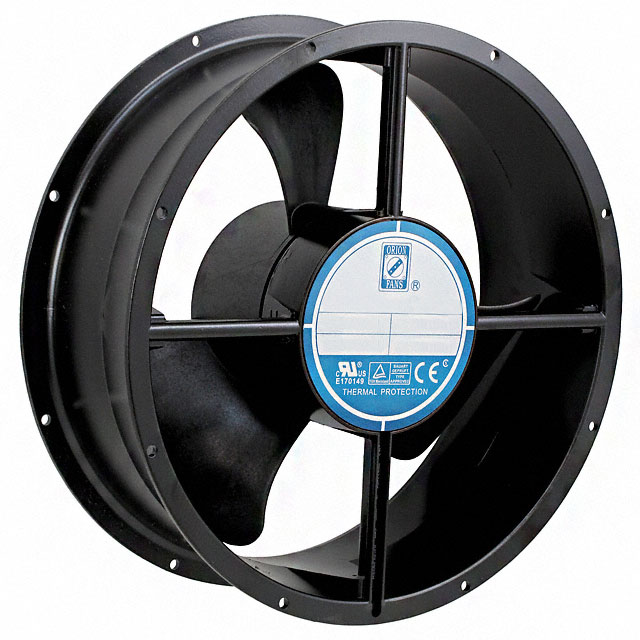

Orion Fans OA254AP-22-1TB(SF)
FAN AXIAL 254X89MM 230VAC TERM
- Manufacturer
- Orion Fans
- Datasheet
- Price
- 83.9
- Stock
- 0
Product Details
- Weight
- 4.1 lbs (1.9 kg)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Air Flow
- 812.0 CFM (22.74m³/min)
- Material - Frame
- Aluminum
- Fan Type
- Tubeaxial
- Size / Dimension
- Round - 254mm Dia
- Features
- Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
- Ingress Protection
- -
- Approvals
- CE, cETL, TUV, ETL
- Current Rating (Amps)
- 0.880A
- Part Status
- Active
- Operating Temperature
- -40 ~ 158°F (-40 ~ 70°C)
- Termination
- 2 Terminals
- Bearing Type
- Ball
- RPM
- 3200 RPM
- Power (Watts)
- 96.0W
- Noise
- 65.0 dB(A)
- Voltage Range
- -
- Width
- 89.00mm
- Static Pressure
- 0.820 in H2O (204.3 Pa)
- Series
- UF25GC
- Voltage - Rated
- 115VAC
