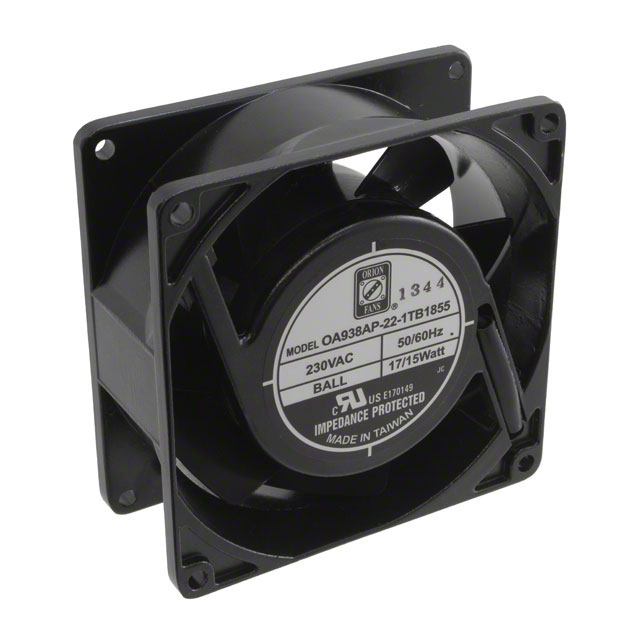

Orion Fans OA938AP-22-1TB1855

Product Details

Air Flow

55.0 CFM (1.54m³/min)

Material - Blade

Metal

Fan Type

Tubeaxial

Material - Frame

Aluminum

Features

-

Size / Dimension

Square - 92mm L x 92mm H

Approvals

cURus, TUV

Ingress Protection

IP55 - Dust Protected, Water Resistant

Part Status

Active

Current Rating (Amps)

-

Termination

2 Wire Leads

Operating Temperature

-22 ~ 176°F (-30 ~ 80°C)

Bearing Type

Ball

RPM

3150 RPM

Power (Watts)

15.00W

Noise

40.0 dB(A)

Voltage Range

100 ~ 120VAC

Width

38.00mm

Static Pressure

0.220 in H2O (54.8 Pa)

Series

OA938

Voltage - Rated

115VAC

Weight

1.1 lbs (499 g)

Lifetime @ Temp.

50000 Hrs @ 55°C
