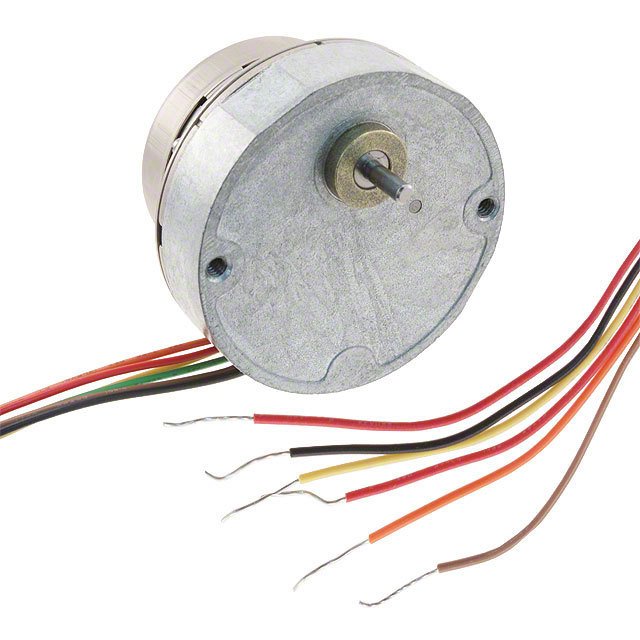

Portescap 42M048C2U-R21

Product Details

Series

17PY

Diameter - Shaft

0.197" (5.00mm)

Weight

0.441 lb (200.03 g)

Size / Dimension

Square - 1.654" x 1.654" (42.00mm x 42.00mm)

Accuracy

±5%

Termination Style

Wire Leads with Connector

Features

Flatted Shaft

Steps per Revolution

400

Approvals

-

Current Rating (Amps)

850mA

Coil Type

Unipolar

Mounting Hole Spacing

1.220" (31.00mm)

Step Angle

0.9°

Operating Temperature

-10°C ~ 50°C

Part Status

Active

Length - Shaft and Bearing

0.787" (20.00mm)

Rotor Inertia

37gcm²

Torque - Holding (oz-in / mNm)

22.7 / 160

Coil Resistance

4.2 Ohms

NEMA Frame Size

17

Type

Hybrid, Dual Shaft

Voltage - Rated

24VDC
