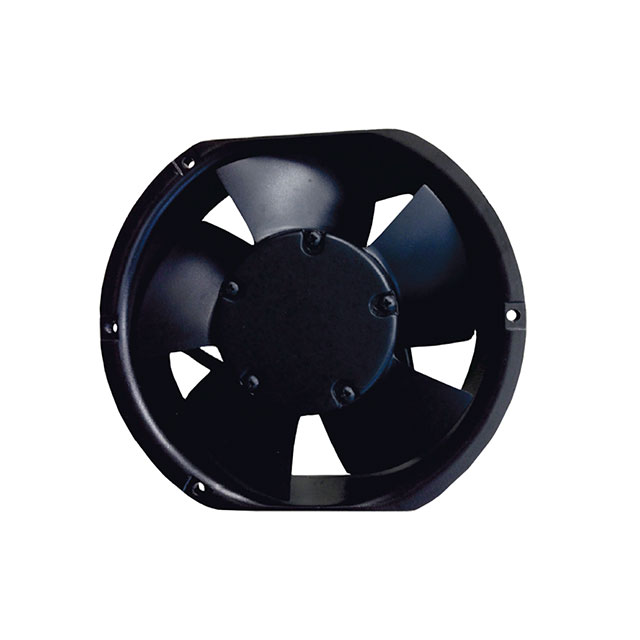

Qualtek FDA2-17251NBKT3F-SF

Product Details

RPM

3300 RPM

Power (Watts)

27.00W

Noise

60.0 dB(A)

Voltage Range

-

Width

51.00mm

Static Pressure

0.768 in H2O (191.3 Pa)

Series

HPLC, FDA2-17251-SF

Voltage - Rated

230VAC

Weight

1.98 lbs (900 g)

Lifetime @ Temp.

-

Air Flow

275.0 CFM (7.70m³/min)

Material - Blade

Plastic

Fan Type

Tubeaxial

Material - Frame

Aluminum

Features

Salt Fog Rated, Thermal Overload Protector (TOP)

Size / Dimension

Rectangular/Rounded - 172mm L x 151mm H

Approvals

CE, cURus, TUV

Ingress Protection

IP56M - Dust Protected, Water Resistant

Part Status

Active

Current Rating (Amps)

0.120A

Termination

2 Wire Leads

Operating Temperature

-4 ~ 158°F (-20 ~ 70°C)

Bearing Type

Ball
