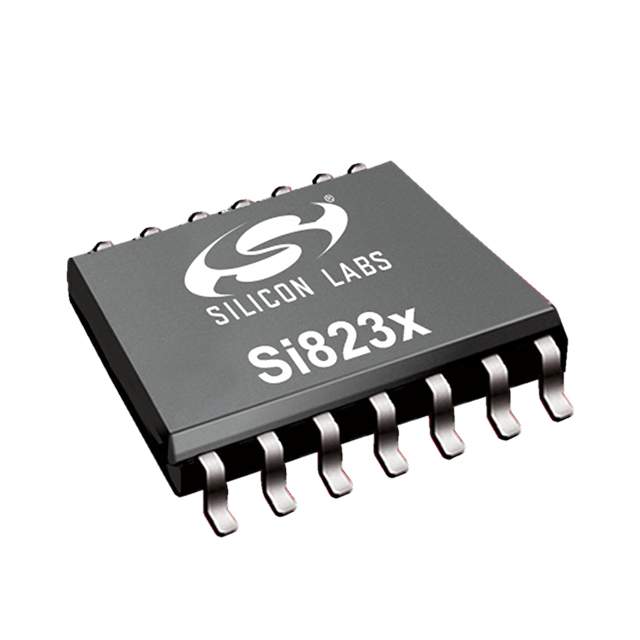

Images are for reference only. See Product Specifications for product details
Silicon Labs SI8233AD-D-IS3R
ISOLATED GATE DRIVER, 8 MM CREEP
- Manufacturer
- Silicon Labs
- Datasheet
- Price
- 2.81
- Stock
- 0
Product Details
- Package / Case
- 14-SOIC (0.295", 7.50mm Width)
- Common Mode Transient Immunity (Min)
- 45kV/µs
- Number of Channels
- 2
- Voltage - Isolation
- 5000Vrms
- Current - Peak Output
- 4A
- Operating Temperature
- -40°C ~ 125°C
- Rise / Fall Time (Typ)
- 12ns, 12ns
- Series
- Automotive, AEC-Q100
- Supplier Device Package
- 14-SOIC
- Approvals
- CQC, CSA, UR, VDE
- Voltage - Output Supply
- 6.5V ~ 24V
- Packaging
- Tape & Reel (TR)
- Current - Output High, Low
- 2A, 4A
- Technology
- Capacitive Coupling
- Pulse Width Distortion (Max)
- 5.6ns
- Part Status
- Active
- Voltage - Forward (Vf) (Typ)
- -
- Mounting Type
- Surface Mount
- Propagation Delay tpLH / tpHL (Max)
- 60ns, 60ns
