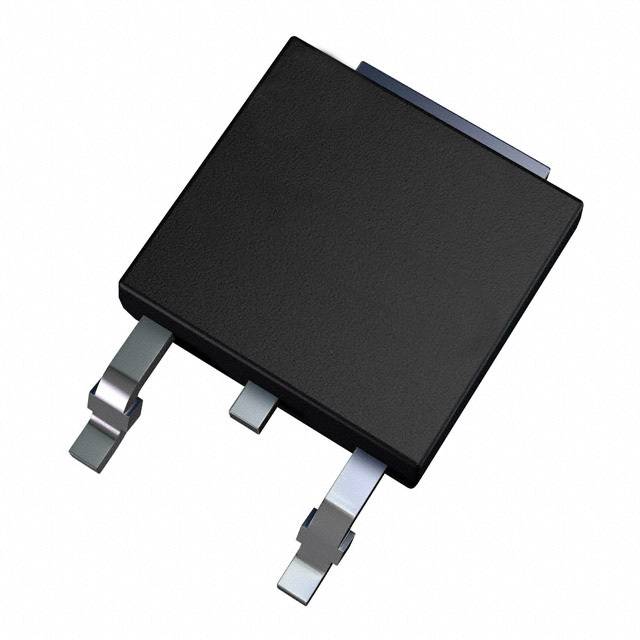

STMicroelectronics STD13NM60ND

Product Details

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

55V

FET Feature

-

Input Capacitance (Ciss) (Max) @ Vds

4400pF @ 25V

Part Status

Active

Current - Continuous Drain (Id) @ 25°C

80A (Tc)

Mounting Type

Surface Mount

Drive Voltage (Max Rds On, Min Rds On)

10V

Package / Case

TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Base Part Number

STB80N

Vgs(th) (Max) @ Id

4V @ 250µA

Operating Temperature

-55°C ~ 175°C (TJ)

Series

STripFET™ II

Rds On (Max) @ Id, Vgs

6.5mOhm @ 40A, 10V

FET Type

N-Channel

Power Dissipation (Max)

300W (Tc)

Packaging

Digi-Reel®

Supplier Device Package

D2PAK

Vgs (Max)

±20V

Gate Charge (Qg) (Max) @ Vgs

189nC @ 10V
