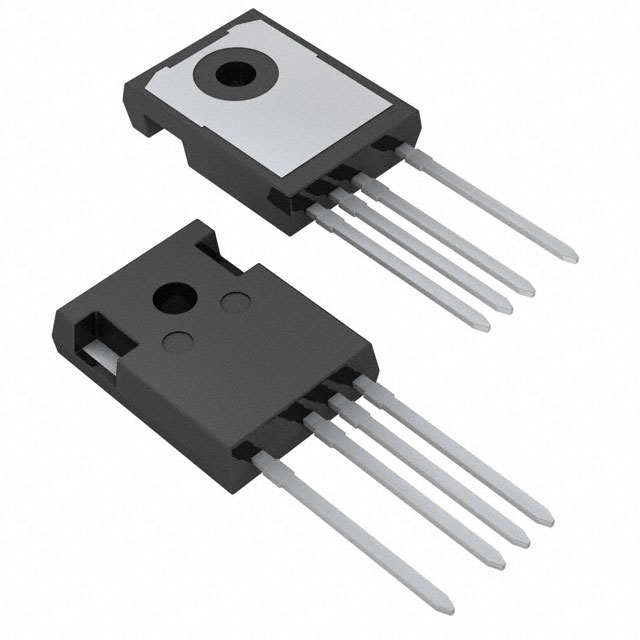

STMicroelectronics STGW40H65DFB-4
IGBT
- Manufacturer
- STMicroelectronics
- Datasheet
- Price
- 5.01
- Stock
- 198
Product Details
- Series
- -
- Td (on/off) @ 25°C
- 22ns/134ns
- IGBT Type
- Field Stop
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Packaging
- Tube
- Supplier Device Package
- TO-247-3
- Input Type
- Standard
- Vce(on) (Max) @ Vge, Ic
- 2.9V @ 15V, 60A
- Gate Charge
- 198nC
- Reverse Recovery Time (trr)
- 47ns
- Part Status
- Active
- Current - Collector (Ic) (Max)
- 120A
- Power - Max
- 378W
- Current - Collector Pulsed (Icm)
- 180A
- Mounting Type
- Through Hole
- Voltage - Collector Emitter Breakdown (Max)
- 600V
- Package / Case
- TO-247-3
- Test Condition
- 400V, 60A, 5Ohm, 15V
- Base Part Number
- FGH60N60
- Switching Energy
- 1.79mJ (on), 670µJ (off)
