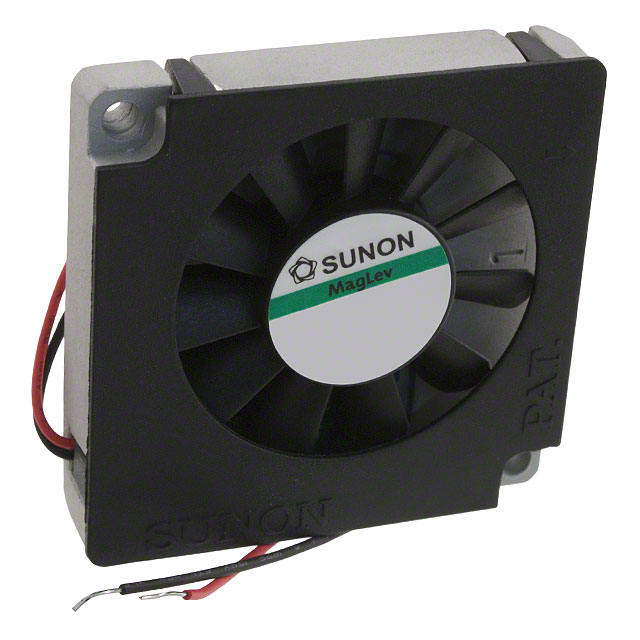

Sunon Fans GB0545AFV1-8.B1824.GN

Product Details

Noise

31.0 dB(A)

Voltage Range

3 ~ 6VDC

Width

6.00mm

Static Pressure

0.310 in H2O (77.2 Pa)

Series

MagLev® GB

Voltage - Rated

5VDC

Weight

0.022 lb (9.98 g)

Lifetime @ Temp.

-

Air Flow

0.880 CFM (0.025m³/min)

Material - Blade

-

Fan Type

Blower

Material - Frame

-

Features

-

Size / Dimension

Square - 34.8mm L x 34.8mm H

Approvals

CE, CUR, TUV, UL

Ingress Protection

-

Part Status

Obsolete

Current Rating (Amps)

0.132A

Termination

2 Wire Leads

Operating Temperature

14 ~ 158°F (-10 ~ 70°C)

Bearing Type

Ball

RPM

9500 RPM

Power (Watts)

700mW
