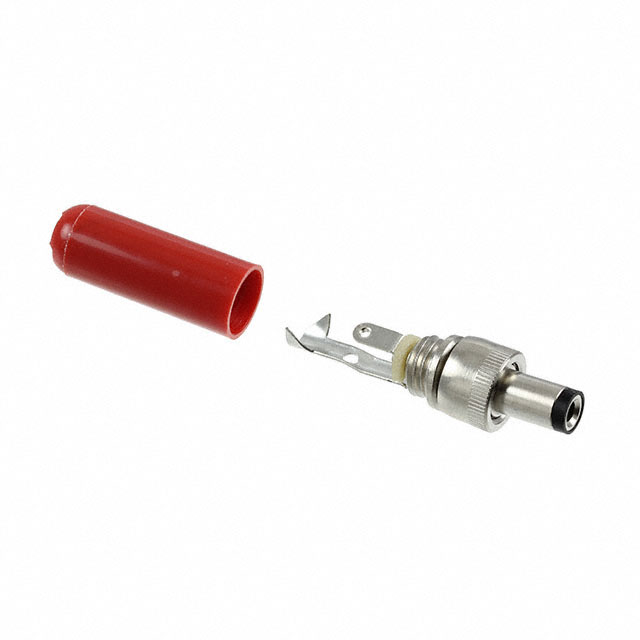

Images are for reference only. See Product Specifications for product details
Switchcraft Inc. 765K
CONN PWR PLUG 2.5X5.5MM SOLDER
- Manufacturer
- Switchcraft Inc.
- Datasheet
- Price
- 5.24
- Stock
- 53
Product Details
- Gender
- Female
- Connector Type
- Plug
- Contact Material - Plating
- Nickel
- Series
- -
- Actual Diameter
- 0.067" (1.70mm ID), 0.187" (4.75mm OD)
- Material Flammability Rating
- -
- Features
- -
- Voltage - Rated
- 20VDC
- Number of Positions/Contacts
- 2 Conductors, 2 Contacts
- Includes
- -
- Contact Material
- Phosphor Bronze
- Industry Recognized Mating Diameter
- 1.70mm ID (0.067"), 4.75mm OD (0.187") EIAJ-3
- Packaging
- Bulk
- Insulation Color
- -
- Shielding
- Unshielded
- Mounting Feature
- -
- Body Color
- Silver
- Ingress Protection
- -
- Part Status
- Active
- Internal Switch(s)
- Does Not Contain Switch
- Termination
- Solder Eyelet(s)
- Dielectric Material
- Brass
- Thread Size
- -
- Mating Length/Depth
- -
- Body Material
- -
- Current Rating (Amps)
- 6A
- Mounting Type
- Free Hanging (In-Line)
- Operating Temperature
- -25°C ~ 70°C
