Images are for reference only. See Product Specifications for product details

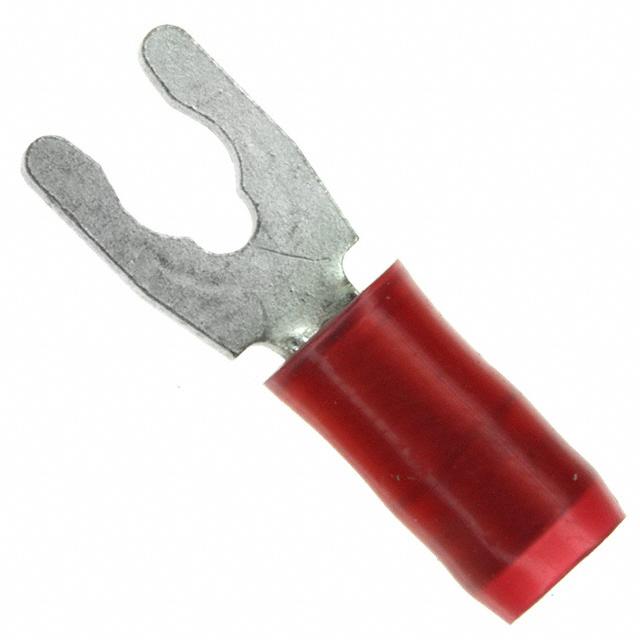

TE Connectivity AMP Connectors 52929-1
CONN SPADE TERM 16-22AWG #6 RED
- Manufacturer
- TE Connectivity AMP Connectors
- Datasheet
- Price
- 0.45
- Stock
- 4091
Product Details
- Part Status
- Active
- Tongue Inside Opening
- 0.190" (4.83mm)
- Termination
- Crimp
- Length - Ring Center to Termination
- 0.281" (7.14mm)
- Mounting Type
- Free Hanging (In-Line)
- Stud/Tab Size
- 10 Stud
- Terminal Type
- Spring, Snap
- Contact Finish
- Tin
- Color
- Blue
- Contact Material
- Phosphor Bronze
- Series
- PIDG
- Length - Overall
- 0.908" (23.06mm)
- Features
- Serrated Termination
- Insulation Diameter
- 0.115" ~ 0.182" (2.92mm ~ 4.62mm)
- Packaging
- Cut Tape (CT)
- Width - Outer Edges
- 0.406" (10.31mm)
- Insulation
- Insulated
- Length - Termination
- 0.404" (10.26mm)
- Wire Gauge
- 14-16 AWG
- Material - Insulation
- Polyamide (PA), Nylon
