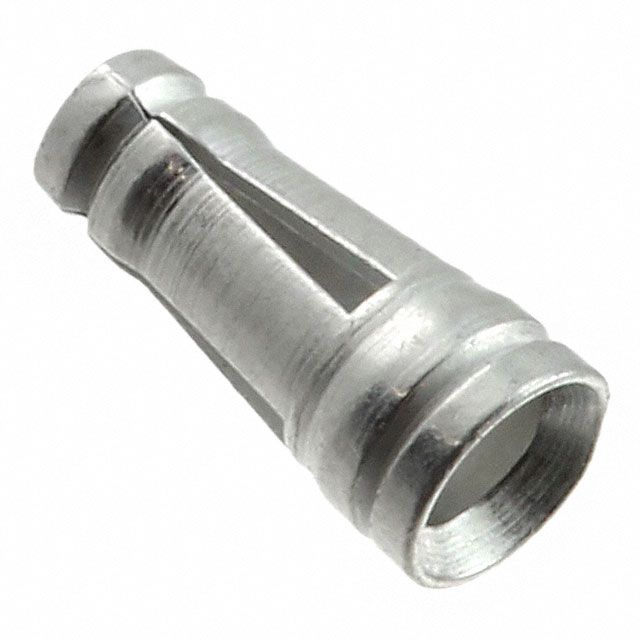

TE Connectivity AMP Connectors 8134-HC-6P3LF

Product Details

Termination

Solder

Mounting Hole Diameter

0.053" ~ 0.055" (1.35mm ~ 1.40mm)

Socket Depth

0.090" ~ 0.145" (2.29mm ~ 3.68mm)

Accepts Square Pin Size

-

Tail Diameter

-

Contact Finish Thickness

30.0µin (0.76µm)

Contact Finish

Gold

Board Thickness

0.031" ~ 0.093" (0.79mm ~ 2.36mm)

Flange Diameter

0.075" (1.91mm)

Insertion Force

-

Series

2

Contact Material

Beryllium Copper

Features

-

Length - Overall

0.158" (4.01mm)

Packaging

Bulk

Pin Hole Diameter

-

Tail Type

No Tail

Accepts Pin Diameter

0.014" ~ 0.022" (0.36mm ~ 0.56mm)

Part Status

Active

Operating Temperature

-65°C ~ 126°C
