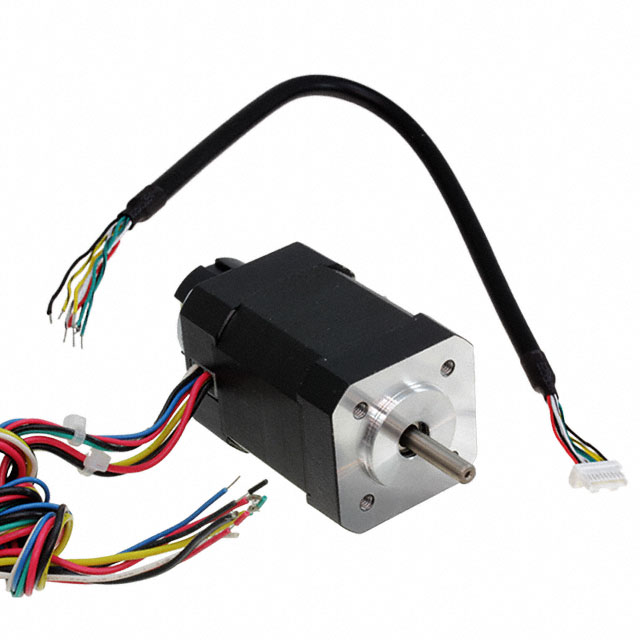

TRINAMIC Motion Control GmbH QBL4208-61-04-013-1024-AT
BLDC MOTOR 4000 RPM 24VDC ENC 10
- Manufacturer
- TRINAMIC Motion Control GmbH
- Datasheet
- Price
- 230.86
- Stock
- 2
Product Details
- Series
- 80180
- Termination Style
- Wire Leads
- Weight
- 1300 g
- Gear Reduction Ratio
- -
- Features
- External Controller
- Mounting Hole Spacing
- 1.575" (40.00mm)
- Function
- Standard
- Operating Temperature
- -40°C ~ 70°C
- Approvals
- -
- Length - Shaft and Bearing
- 0.984" (25.00mm)
- Motor Type
- Brushless (BLDC)
- Torque - Rated (oz-in / mNm)
- 43.47 / 307
- Part Status
- Active
- Torque - Max Momentary (oz-in / mNm)
- 108.1 / 763
- Encoder Type
- -
- Power - Rated
- 120W
- Voltage - Rated
- 24VDC
- RPM
- 4000 RPM
- Diameter - Shaft
- 0.315" (8.00mm)
- Type
- DC Motor
- Size / Dimension
- Round - 0.315" Dia (8.00mm)
