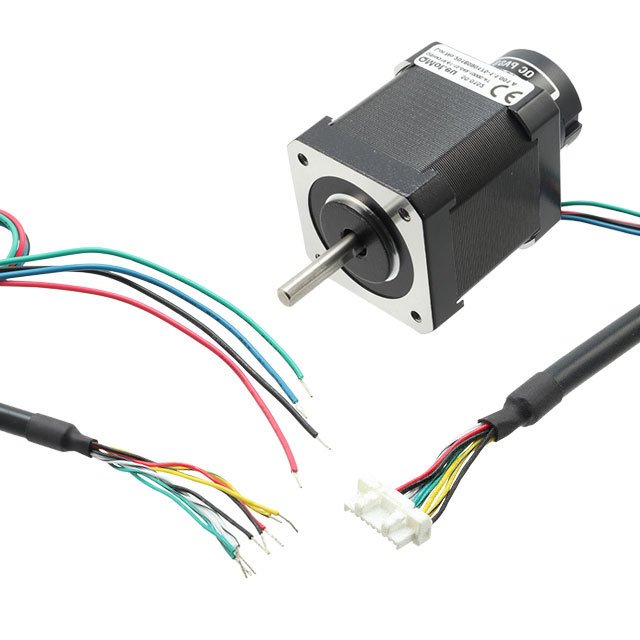

TRINAMIC Motion Control GmbH QSH4218-51-10-049-10000-AT

Product Details

Features

Integrated Controller, Flatted Shaft

Current Rating (Amps)

2.8A

Approvals

-

Mounting Hole Spacing

1.856" (47.14mm)

Coil Type

Bipolar

Operating Temperature

-

Step Angle

1.8°

Length - Shaft and Bearing

0.945" (24.00mm)

Part Status

Active

Torque - Holding (oz-in / mNm)

77.89 / 550

Rotor Inertia

-

NEMA Frame Size

23

Voltage - Rated

24VDC

Type

Hybrid

Diameter - Shaft

0.250" (6.35mm)

Series

PANdrive™

Size / Dimension

Square - 2.362" x 2.362" (60.00mm x 60.00mm)

Weight

-

Termination Style

Wire Leads with Connector

Accuracy

-

Steps per Revolution

200
