Backplanes

Backplanes are boards with a series of connectors attached to them in parallel. They are often located on the rear of a card rack allowing connection for other boards or devices to be inserted into the connectors. The number of channels range from 2 to 21 with interface options such as CompactPCI, Standard Bus, Uncommitted, VME J1, VME J1/J2, and VME J1/J2/J0.

---

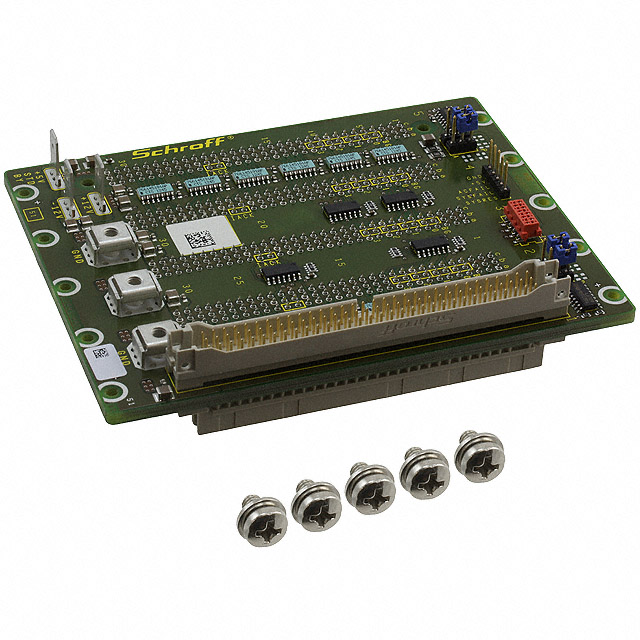

Schroff 23001005

BACKPLANE 3U 5 CHAN VME J1

235.13

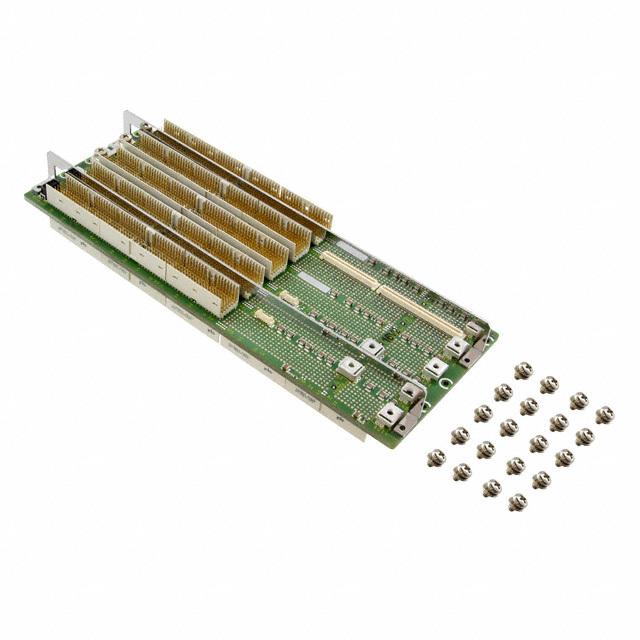

Schroff 23006865

BACKPLANE 6U 5 CHAN COMPACTPCI

1012.26

Vector Electronics VME64E07P01

BACKPLANE 6U 7 CHAN VME J1/J2/J0

973

Vector Electronics 4626-10

BACKPLANE 3U 10 CHAN

0

Vector Electronics VMEBP10-P11

BACKPLANE 6U 10 CHAN VME J1/J2

0

Vector Electronics VMEBP05S00

BACKPLANE 6U 5 CHAN VME J1/J2

0

Vector Electronics VMEBP7P00

BACKPLANE 6U 7 CHAN VME J1/J2

0

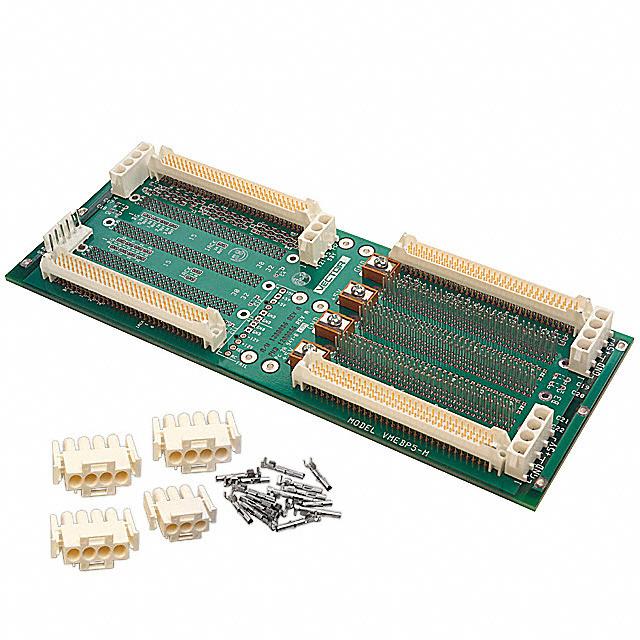

Vector Electronics VMEBP5M00

BACKPLANE 6U 5 CHAN VME J1/J2

0
