Flat Ribbon Cables

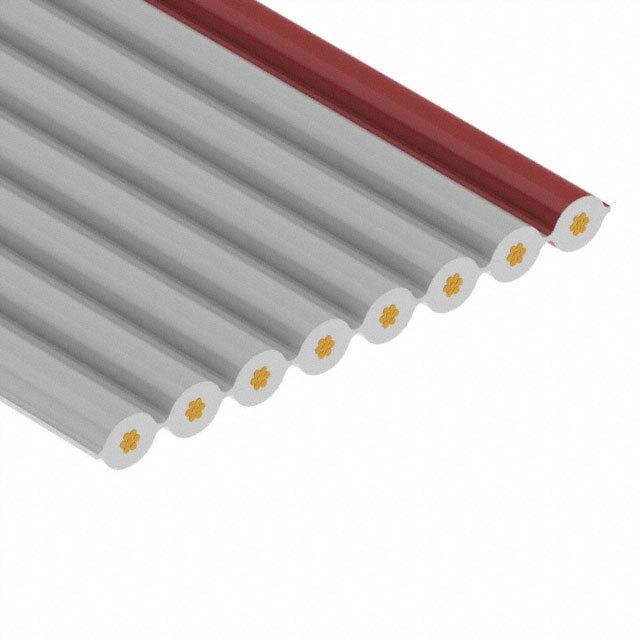

Flat Ribbon Cables are a series of single conductor wires placed parallel to each other and molded together. Most ribbon cables are color coded for pin one usually red in color. The cable types are Flat cable, Flat Jacket, Ground Plane, Round Jacket, Split Conductor, Flat Twin Axial, and Flat Twisted Pair with the number of conductors ranging from 2 to 154 and pitch ranging from 0.017” (0.43mm) to 0.394” (10.00mm).

---

Molex 1000570301

32 AWG SPC 16 COND 025 PITCH RD

3.68

Molex 1000570146

28 AWG 12 COND .0394 PITCH BL BL

3.46

Molex 1000570095

26 AWG SPC 10 COND 050 PITCH RAI

3.46

Molex 1000570342

28 AWG SPC 10 COND 050 PITCH RED

3.28

Molex 1000570300

32 AWG SPC 12 COND 025 PITCH RD

2.68

Molex 1000570260

30 AWG SPC 10 COND 025 PITCH BL

1.72

3M 3365/08 100

CBL RIBN 8COND 0.050 GRAY 1'

0.61

HARTING 09180647006

CBL RIBN 64COND TWIST-PAIR 100'

466.67
