Capacitor Networks, Arrays

Capacitor networks or arrays are devices of two or more capacitors in a single surface, through-hole or chassis mount package. The capacitors may be isolated from each other or connected in a bussed circuit type. Single or multiple capacitance values range from 10 pf to 80 µf and 5% to 20% tolerance. Dielectric materials include ceramic, metallized polymer and polypropylene in 6.3 to 440 rated operating voltage.

---

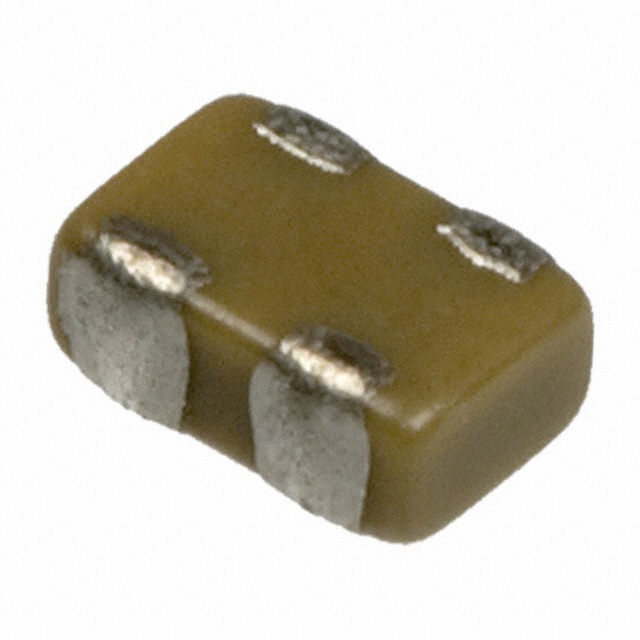

AVX Corporation W1A25A220KAT2A

CAP ARRAY 22PF 50V NP0 0504

0.2

AVX Corporation W1A25A150KAT2A

CAP ARRAY 15PF 50V NP0 0504

0.2

AVX Corporation W1A2YD223MAT2A

CAP ARRAY 0.022UF 16V X5R 0504

0.2

AVX Corporation W1A2YC682MAT2A

CAP ARRAY 6800PF 16V X7R 0504

0.2

AVX Corporation W1A2YC682KAT2A

CAP ARRAY 6800PF 16V X7R 0504

0.2

AVX Corporation W2A23A680KAT2A

CAP ARRAY 68PF 25V NP0 0508

0.2

AVX Corporation W2A23A560KAT2A

CAP ARRAY 56PF 25V NP0 0508

0.2

AVX Corporation W2A23A470KAT2A

CAP ARRAY 47PF 25V NP0 0508

0.2
