Edgeboard Connectors

Card edge or edgeboard connectors are a style of connector system in which (typically) a pattern of exposed copper regions at the periphery of a printed circuit board constitutes one-half of a mating connector pair. A common use case being the connection of accessory cards such as graphics accelerators to computer motherboards in desktop PC applications, they offer a relatively low-cost, high density interconnect option for applications where durability is not a primary concern.

---

TE Connectivity AMP Connectors 6651866-1

CONN,BLD,MC

1.76

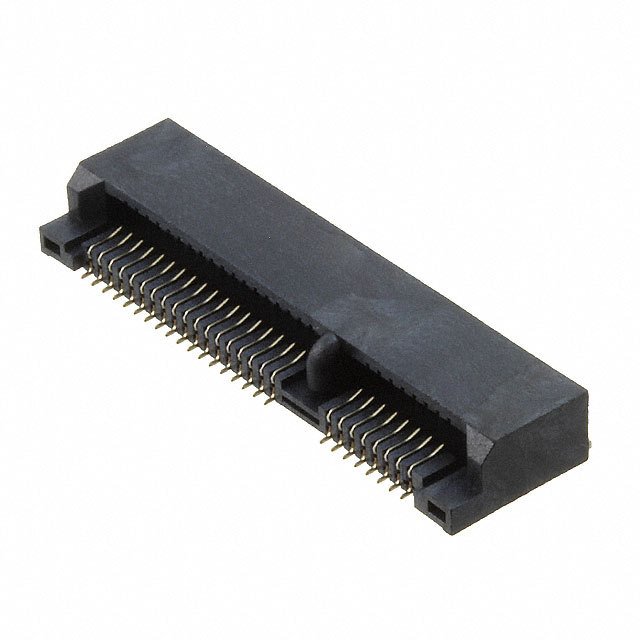

TE Connectivity AMP Connectors 2041119-1

CONN PCI EXP MINI FEMALE 52POS

1.38

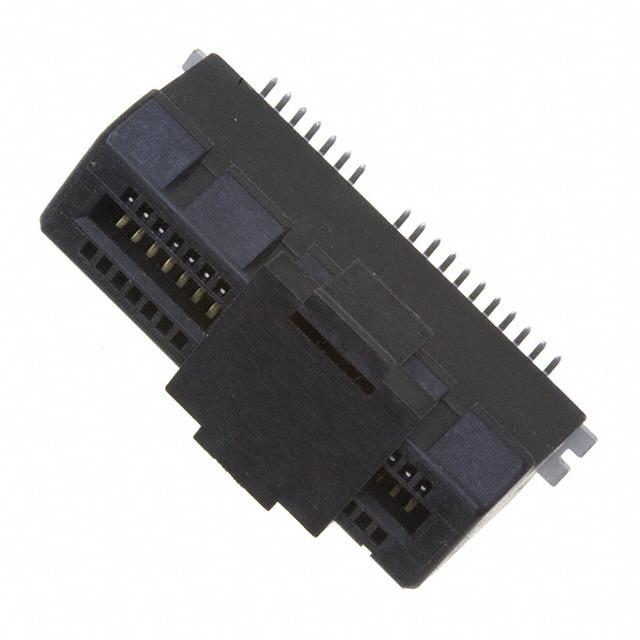

Amphenol ICC (FCI) 10061913-110PLF

CONN PCI EXP FEMALE 36POS 0.039

0

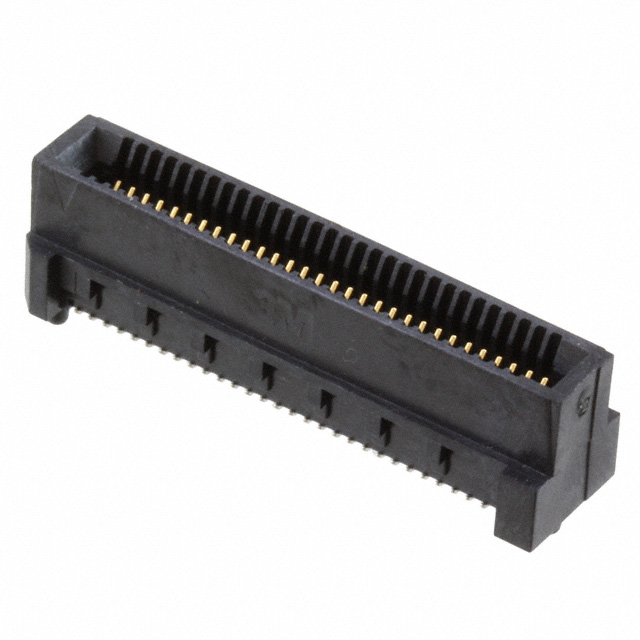

3M SPD08-060-RB-TR

CONN EDGE DUAL FMALE 60POS 0.031

8.52

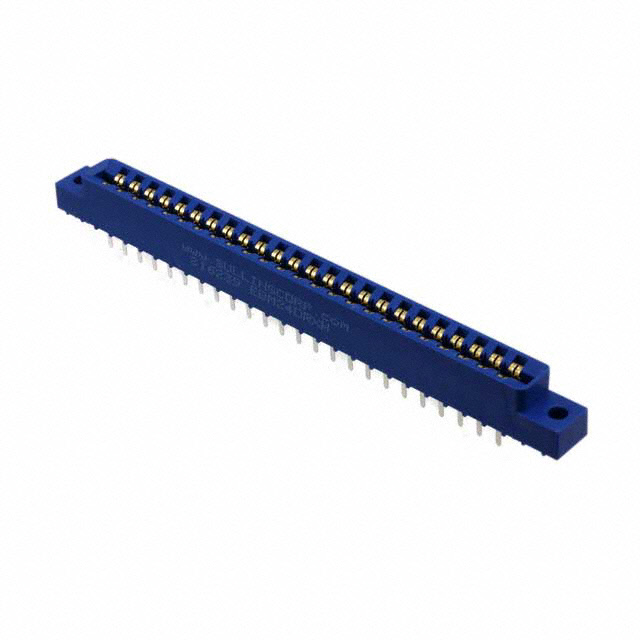

Sullins Connector Solutions EBM24DRXH

CONN EDGE DUAL FMALE 48POS 0.156

5.95

Samtec, Inc. MEC8-125-02-L-D-RA1

CONN EDGE DUAL FMALE 50POS 0.031

7.78

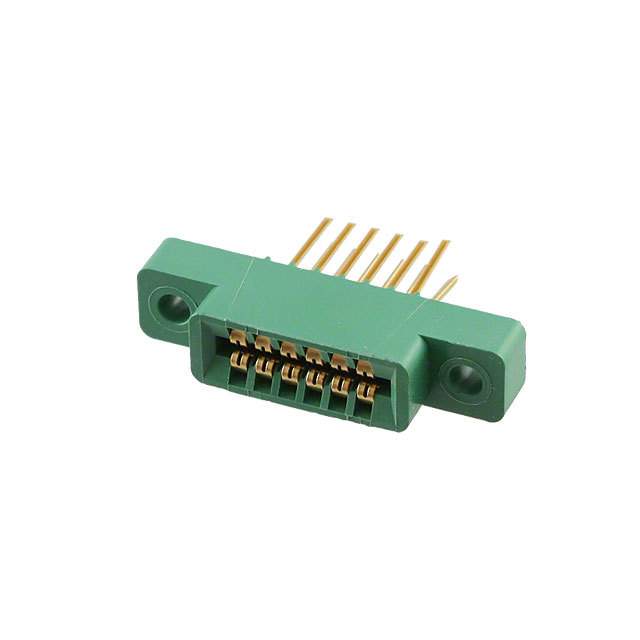

Sullins Connector Solutions FMC06DRYH

CONN EDGE DUAL FMALE 12POS 0.100

15.72

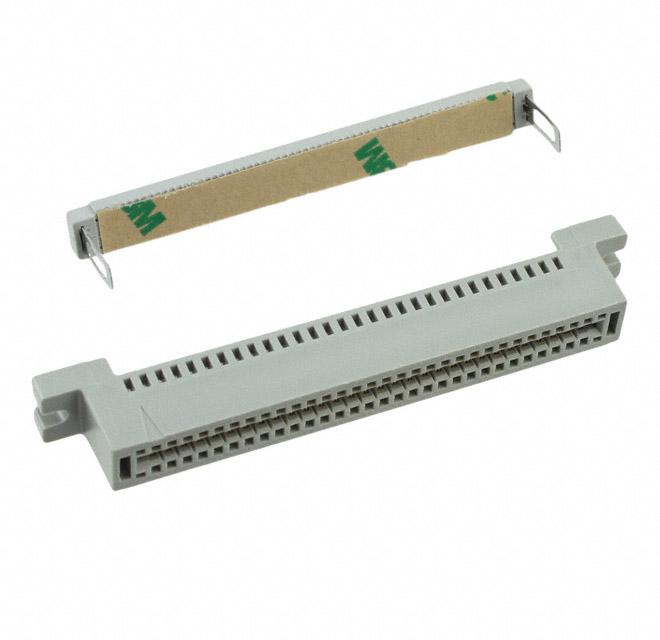

3M 3666-0000

CONN EDGE DUAL FMALE 60POS 0.100

15.1
