Shunts, Jumpers

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).

---

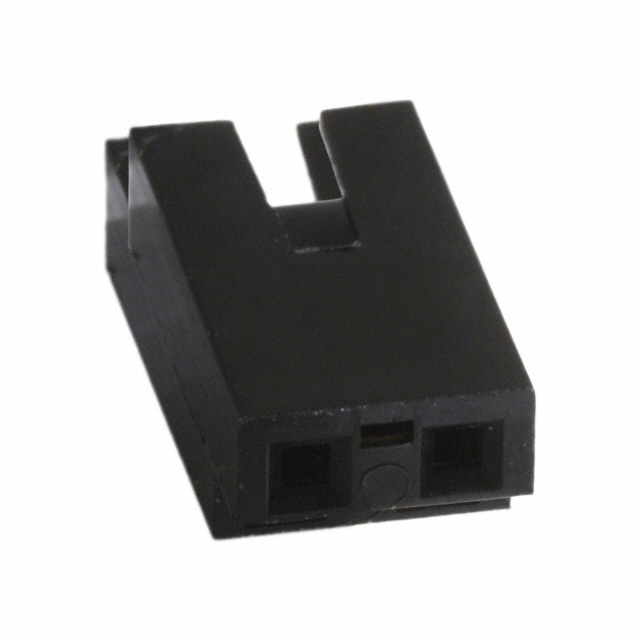

Amphenol ICC (FCI) 63429-142LF

CONN SHUNT

0.09

Amphenol ICC (FCI) 63429-432LF

CONN SHUNT

0.12

Harwin Inc. M7971-46

JUMPER SKT W HANDLE BLUE

0.12

Amphenol ICC (FCI) 63429-332LF

CONN SHUNT

0.12

Amphenol ICC (FCI) 71363-102

71363-102-HIGH BODY JUMPER

0.18

TE Connectivity AMP Connectors 2-880584-1

SHUNT CONN. ASSY

0.17

TE Connectivity AMP Connectors 1-880584-1

SHUNT CONN ASSY

0.17

TE Connectivity AMP Connectors 880584-7

AMP SHUNT CONNECTOR ASSY

0.25
