Bridge Rectifiers

Diode bridge rectifiers are an arrangement of diodes in a bridge circuit configuration for conversion of an alternating current (AC) input to a direct current (DC) output. These components can be chassis, DIN rail, surface or through-hole mounted, and are selected by single phase or three phase diode type, forward voltage rating, average rectified current, and technology.

---

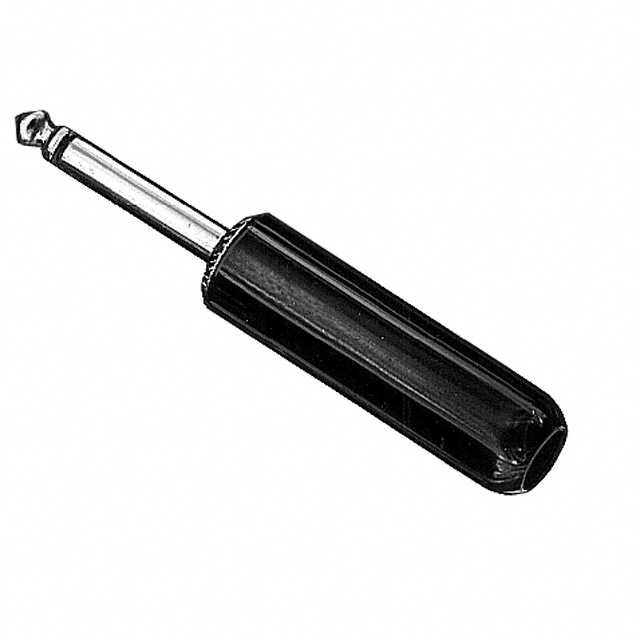

Switchcraft Inc. S250

CONN PLUG MONO 5.23MM 2COND

6.53

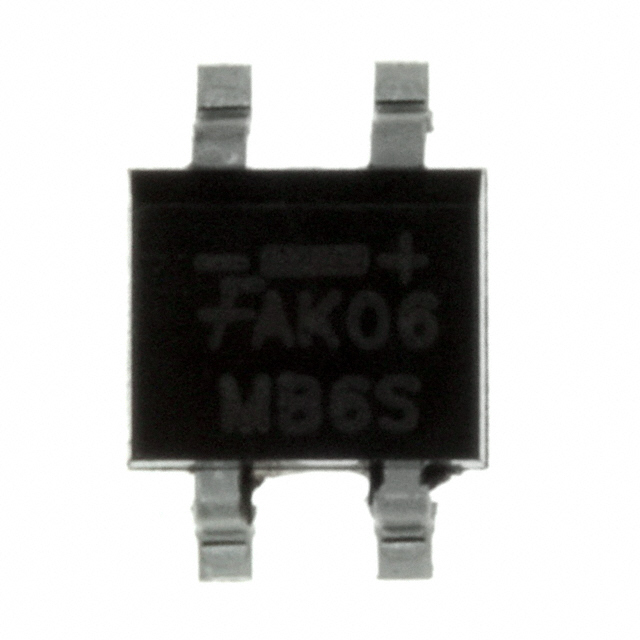

ON Semiconductor MB6S

BRIDGE RECT 1P 600V 500MA 4SOIC

0.1

Vishay / Semiconductor - Diodes Division MB6S-E3/80

BRIDGE RECT 1P 600V TO269AA

0

Comchip Technology CDBHM260L-HF

BRIDGE RECT 1PHASE 60V 2A MBS-2

0.82

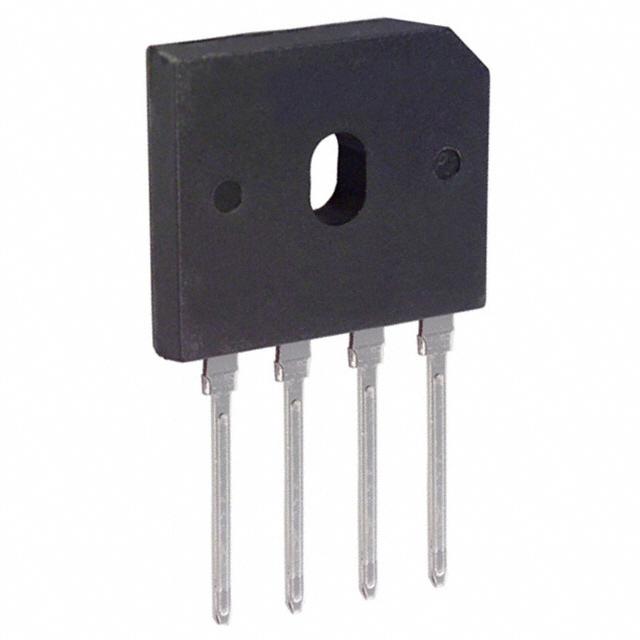

Diodes Incorporated GBU410

BRIDGE RECT 1PHASE 1KV 4A GBU

1.55

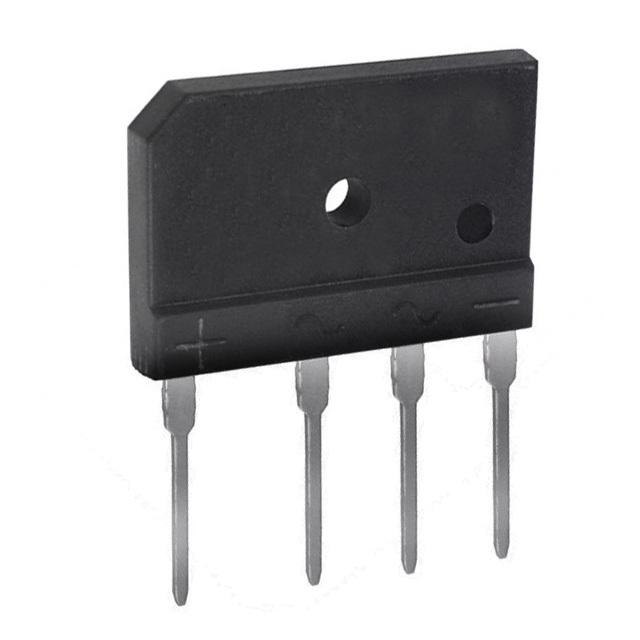

Diodes Incorporated GBJ2506-F

BRIDGE RECT 1PHASE 600V 25A GBJ

1.32

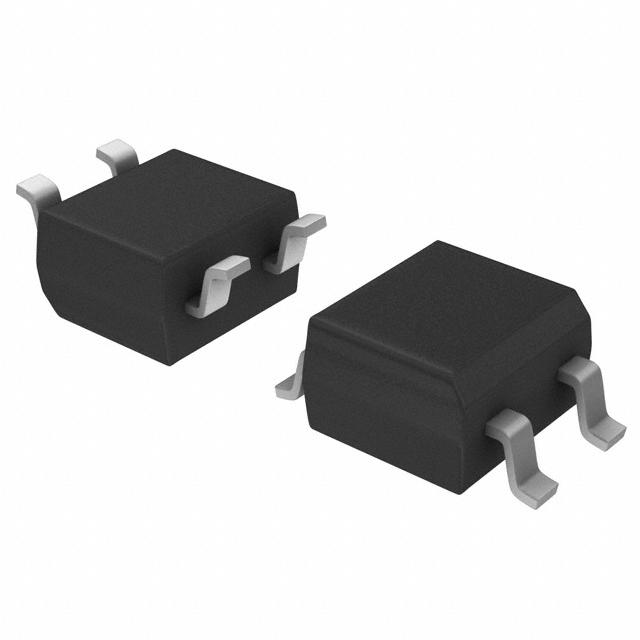

Micro Commercial Co MB2S-TP

BRIDGE RECT 1P 200V 500MA MBS-1

0.1

Micro Commercial Co MB1S-TP

BRIDGE RECT 1P 100V 500MA MBS-1

0
