Trimmer Potentiometers

Trimmer potentiometers allow for precise manual adjustment of an in-circuit resistance value. Also known as trimpots, they are available in bottom, side or top adjustment and may allow for single or multiple turns of actuation. They range in value from 10 Ω to 5 MΩ of resistance and 5% to 30% of value tolerance in surface mount, through-hole, chassis mount, and panel mount configurations.

---

Bourns, Inc. 3314G-2-103E

TRIMMER 10K OHM 0.25W GW TOP ADJ

2.18

Bourns, Inc. 3314Z-1-105E

TRIMMER 1M OHM 0.25W J LEAD SIDE

2.4

Bourns, Inc. 3314R-1-501E

TRIMMER 500 OHM 0.25W GW BOTTOM

2.54

TT Electronics/BI 84WR20KLFTR

TRIMMER 20K OHM 0.25W SMD TOP

0

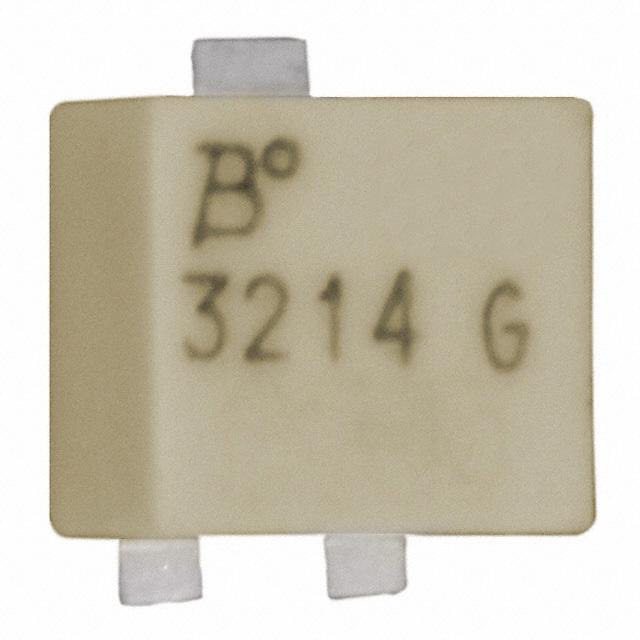

Bourns, Inc. 3214G-1-102E

TRIMMER 1K OHM 0.25W GW SIDE ADJ

1.75

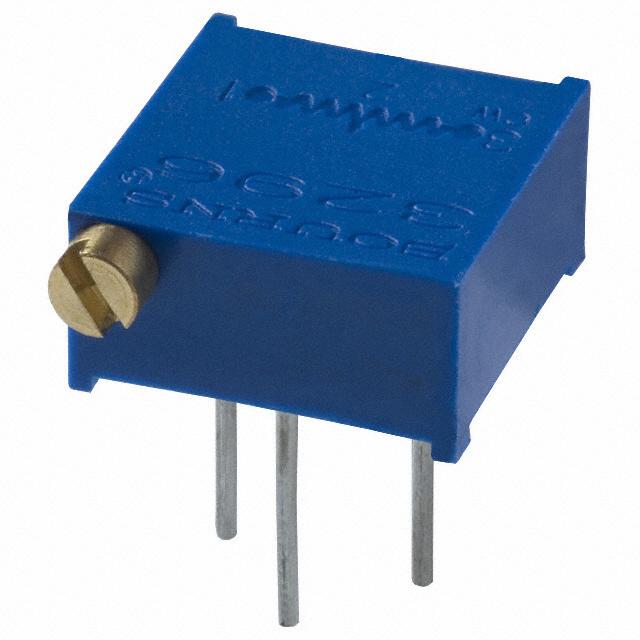

Bourns, Inc. 3296P-1-200LF

TRIMMER 20 OHM 0.5W PC PIN SIDE

3.23

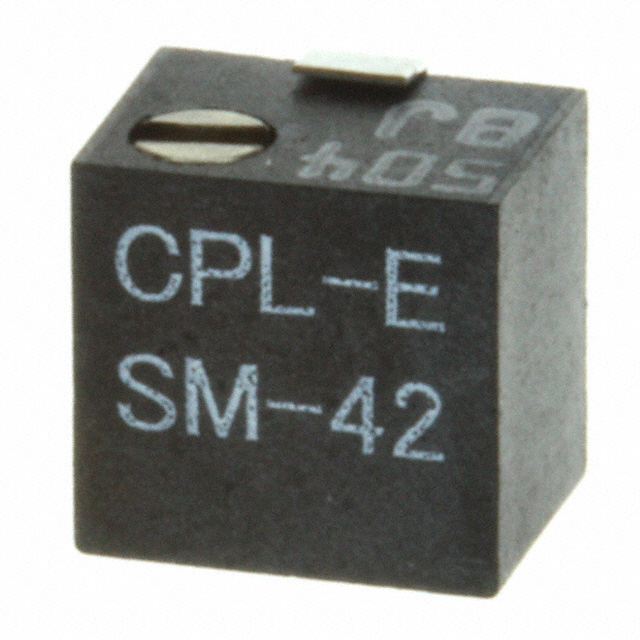

Nidec Copal Electronics SM-42TA504

TRIMMER 500K OHM 0.25W J LEAD

1.84

Nidec Copal Electronics SM-3TW104

TRIMMER 100K OHM 0.125W J LEAD

3.44
