RF Directional Coupler

RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.

---

Anaren DC1722J5005AHF

RF DIR COUPLER 1.7-2.2GHZ 0805

0

Anaren C0727J5003AHF

RF DIR COUPLR 700MHZ-2.7GHZ 0805

0.46

Anaren DC1722J5020AHF

RF DIR COUPLER 1.7-2.2GHZ 0805

0.96

Anaren DC1722J5010AHF

RF DIR COUPLER 1.7-2.2GHZ 0805

0

Anaren DC2337J5010AHF

RF DIR COUPLER 2.3-3.7GHZ 0805

0

Anaren C2327J5003AHF

RF DIR COUPLER 2.3-2.7GHZ 0805

0

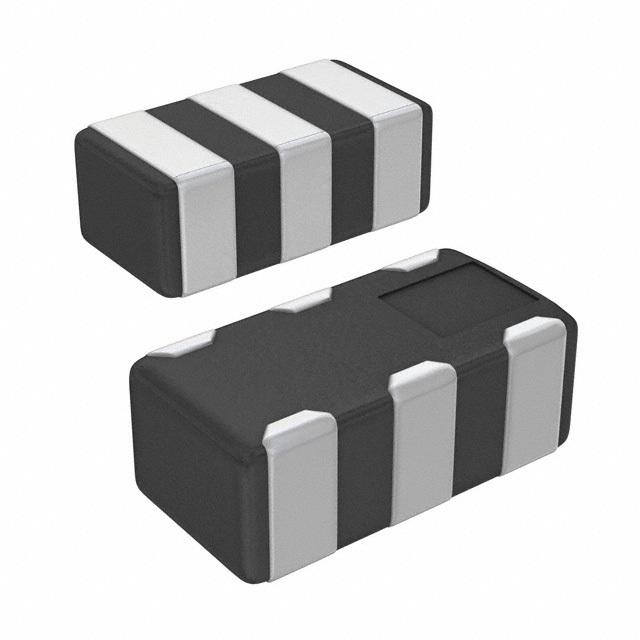

TDK Corporation HHM22106C1

RF DIR CPLR 700MHZ-2.7GHZ 0603

0.24

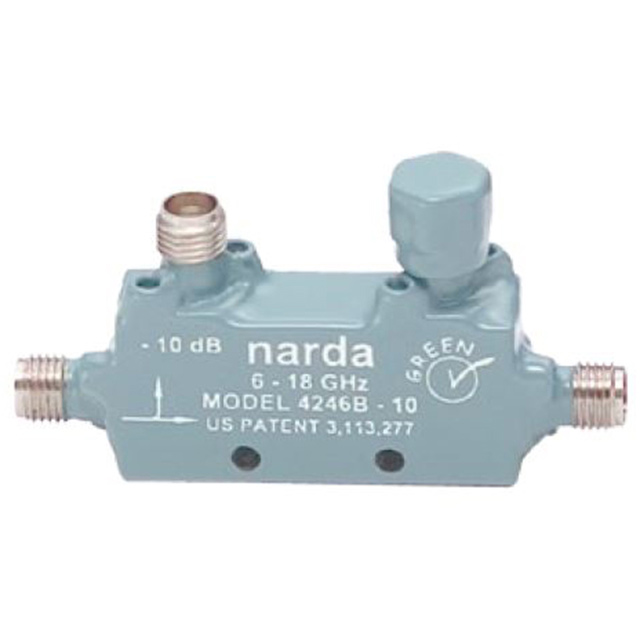

L3 Narda-MITEQ 4246B-10

RF DIR COUPLER 6GHZ-18GHZ MODULE

814.9
