Backplanes

Backplanes are boards with a series of connectors attached to them in parallel. They are often located on the rear of a card rack allowing connection for other boards or devices to be inserted into the connectors. The number of channels range from 2 to 21 with interface options such as CompactPCI, Standard Bus, Uncommitted, VME J1, VME J1/J2, and VME J1/J2/J0.

---

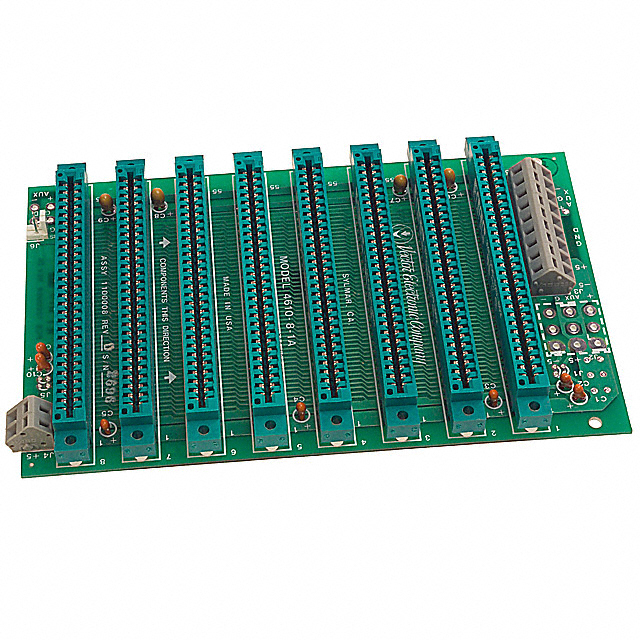

Vector Electronics 4610-8-1A

BACKPLANE 3U 8 CHAN STANDARD BUS

210.43

Vector Electronics VMEBP2J1

BACKPLANE 3U 2 CHAN VME J1/J2

159.39

Schroff 23001007

BACKPLANE 3U 7 CHAN VME J1

302.97

Schroff 23001004

BACKPLANE 3U 4 CHAN VME J1

298.61

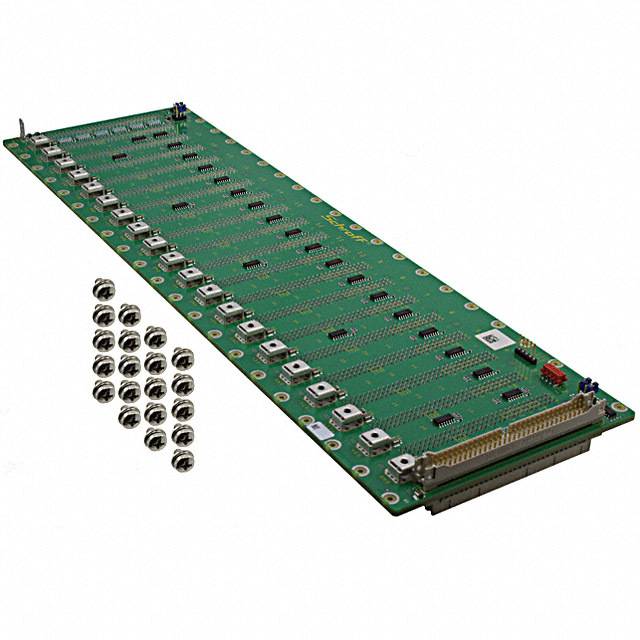

Schroff 23001021

BACKPLANE 3U 21 CHAN VME J1

1091.93

Schroff 23001535

BACKPLANE 6U 5 CHAN VME J1/J2

967.75

Schroff 23001069

BACKPLANE 6U 9 CHAN VME J1/J2

864.64

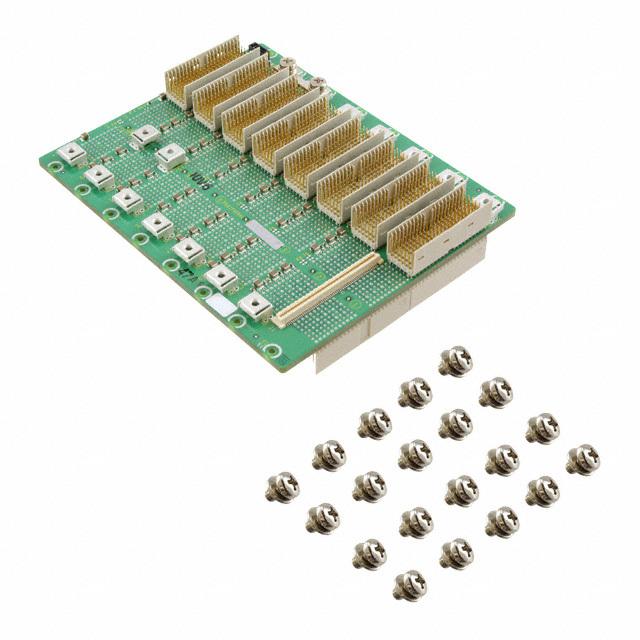

Schroff 23006300

BACKPLANE 3U 8 CHAN COMPACTPCI

600.32
