PTC Resettable Fuses

PTC Resettable Fuses are designed to stop current flow when it exceeds a certain limit (overcurrent protection). The Fuses work by increasing its resistance as its temperature rises due to the current increase. The trip current ranges from 14 mA to 50 A with the Time to trip ranging from 8 ms to 90 s. PTC = Positive Temperature Coefficient.

---

Littelfuse Inc. MICROSMD500LR-2

PTC RESET FUSE 6V 5A 1210

0.34

Littelfuse Inc. MICROSMD550LR-2

PTC RESET FUSE 5V 5.5A 1210

0

Bourns, Inc. MF-USML300-2

PTC RESET FUSE 6V 3A 1210

0.32

Littelfuse Inc. MICROSMDCH010F-02

PTC RESET FUSE 30V 100MA 1210

0.88

Littelfuse Inc. 2920L600/12MR

PTC RESET FUSE 12V 6A 2920

0

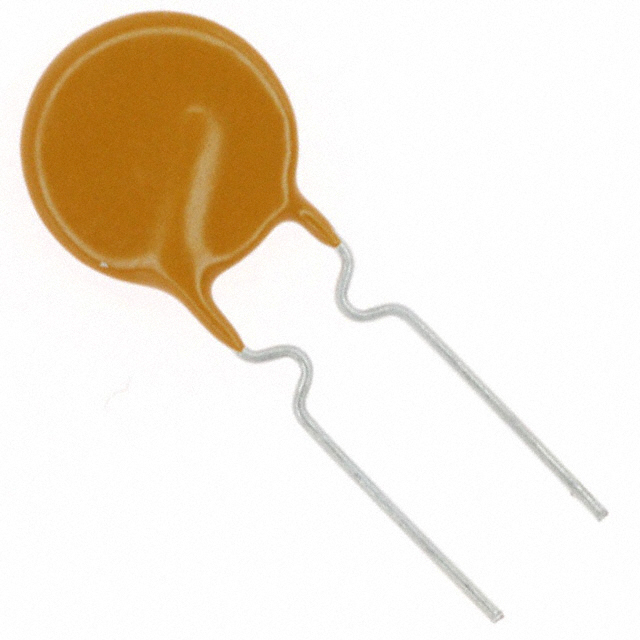

Bourns, Inc. MF-R160-2-99

PTC RESET FUSE 30V 1.6A RADIAL

0.88

Littelfuse Inc. ASMDC075F-2

PTC RESET FUSE 33V 750MA 2SMD

0.93

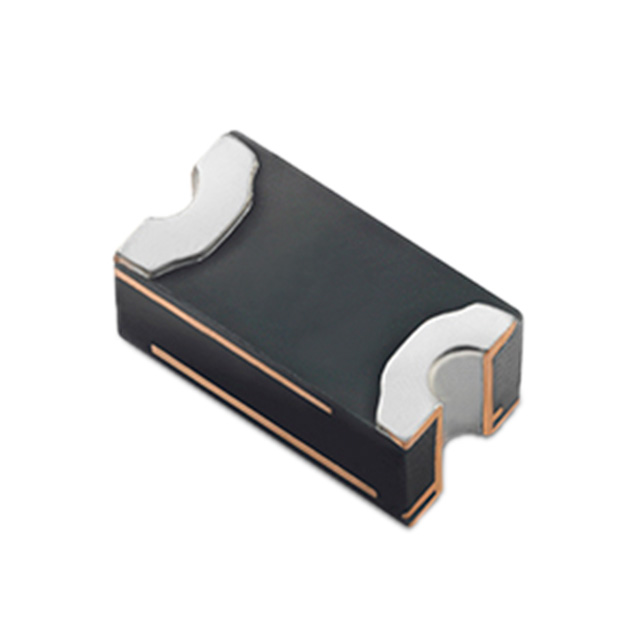

Littelfuse Inc. FEMTOASMDC008F-2

PTC RESET FUSE 12V 80MA 0603

0
