PTC Resettable Fuses

PTC Resettable Fuses are designed to stop current flow when it exceeds a certain limit (overcurrent protection). The Fuses work by increasing its resistance as its temperature rises due to the current increase. The trip current ranges from 14 mA to 50 A with the Time to trip ranging from 8 ms to 90 s. PTC = Positive Temperature Coefficient.

---

Littelfuse Inc. MINISMDC110F/16-2

PTC RESET FUSE 16V 1.1A 1812

0.21

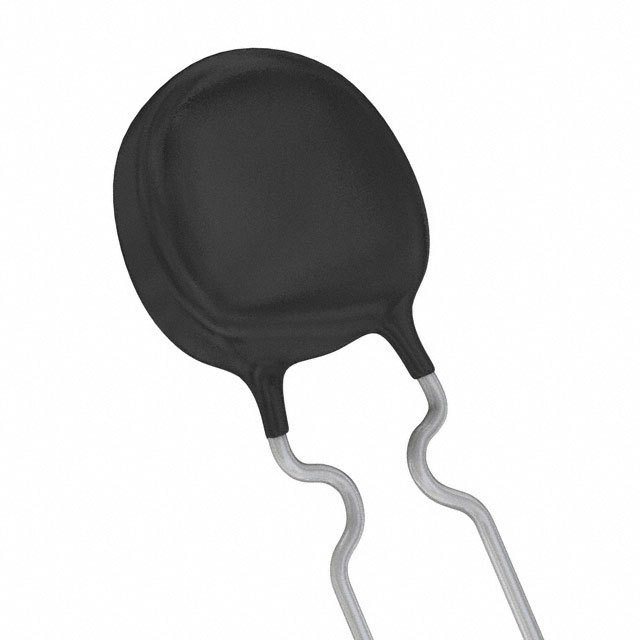

Vishay BC Components PTCCL05H630HBE

PTC RESET FUSE 265V 63MA RADIAL

1.11

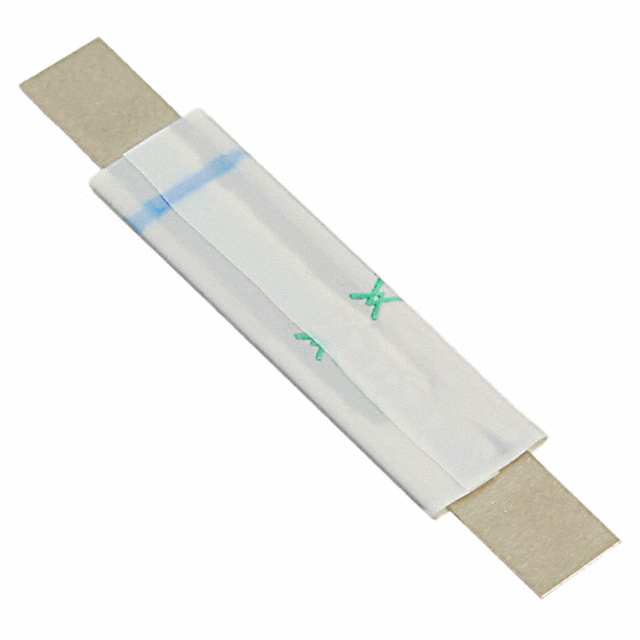

Littelfuse Inc. LR4-550F

PTC RESET FUSE 20V 5.5A STRAP

1.09

Littelfuse Inc. RUEF500-1

PTC RESET FUSE 30V 5A RADIAL

0.77

Yageo SMD1210B020TF

PPTC SMD 1210, 30V 0.2A, REEL 7"

0

Yageo SMD1812B050TF

PPTC SMD 1812, 15V 0.5A, REEL 7"

0.05

Yageo SMD0805B050TF

PPTC SMD 0805, 6V 0.5A, REEL 7"

0

Yageo SMD2920B100TF

PPTC SMD 2920, 33V 1.1A, REEL 7"

0.09
