PTC Resettable Fuses

PTC Resettable Fuses are designed to stop current flow when it exceeds a certain limit (overcurrent protection). The Fuses work by increasing its resistance as its temperature rises due to the current increase. The trip current ranges from 14 mA to 50 A with the Time to trip ranging from 8 ms to 90 s. PTC = Positive Temperature Coefficient.

---

Littelfuse Inc. TS250-130F-RC-2

PTC RESET FUSE 60V 130MA 2SMD

0.43

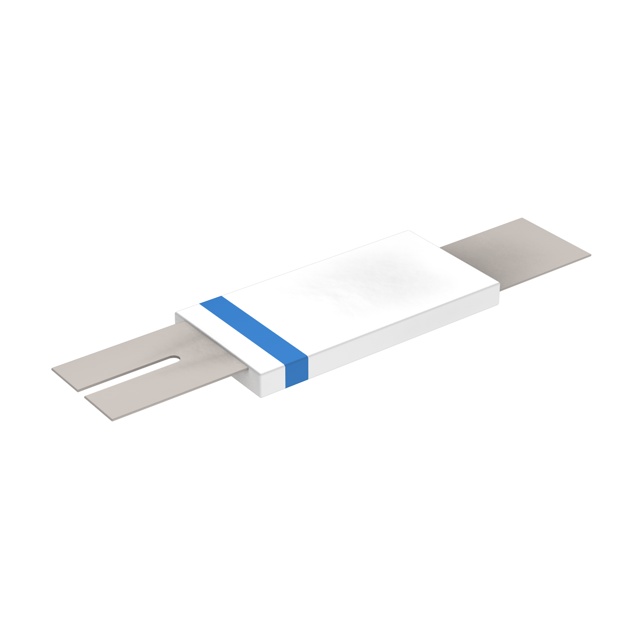

Littelfuse Inc. 20LR730U

PTC RESET FUSE 20V 7.3A STRAP

0.43

Littelfuse Inc. 20LR730SU

PTC RESET FUSE 20V 7.3A STRAP

0.43

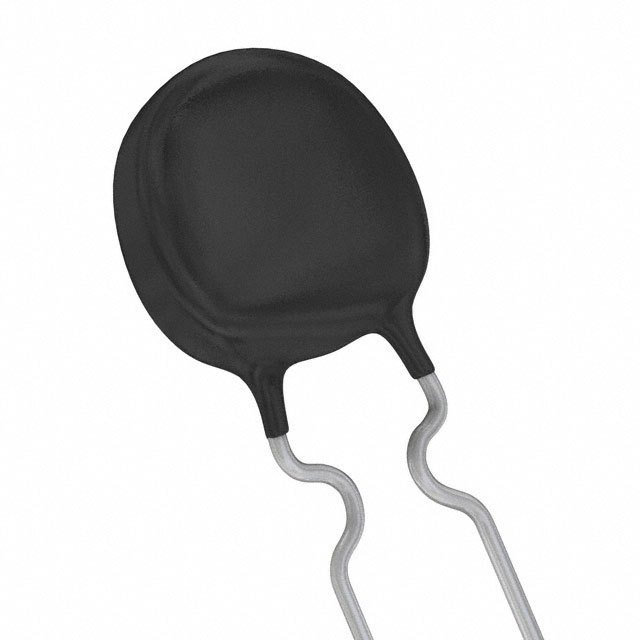

Vishay BC Components PTCCL05H470FBE

PTC RESET FUSE 145V 47MA RADIAL

0.44

Eaton-Electronics Division PTR030V0900-TR1

PTC RESET FUSE 30V 9A RADIAL

0.44

Eaton-Electronics Division PTR030V0900-TR

PTC RESET FUSE 30V 9A RADIAL

0.44

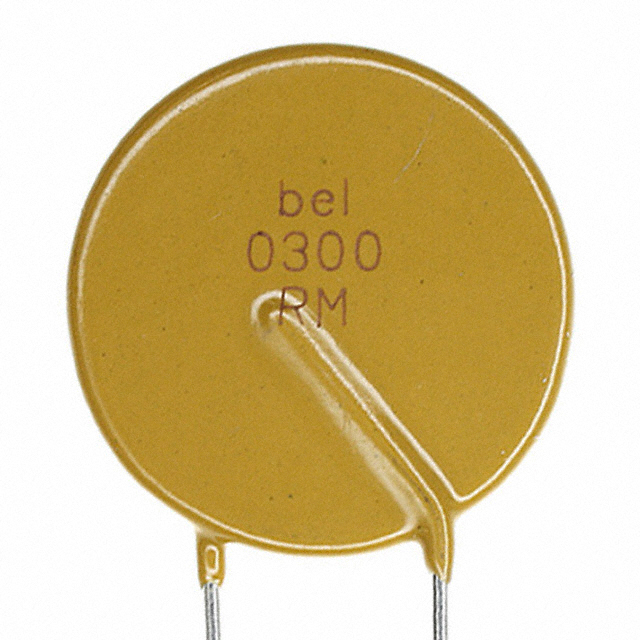

Bel Fuse, Inc. 0ZRM0300FF1A

PTC RESET FUSE 120V 3A RADIAL

0.44

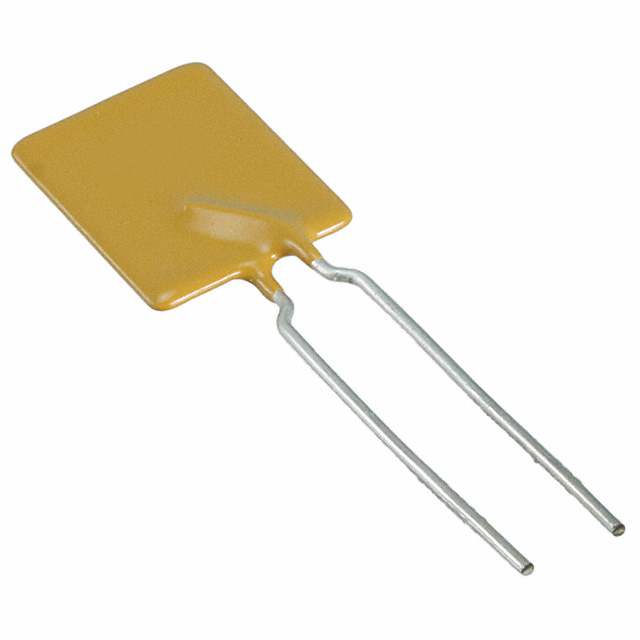

Littelfuse Inc. AHRF700

PTC RESET FUSE 16V 7A RADIAL

0.47
