PTC Resettable Fuses

PTC Resettable Fuses are designed to stop current flow when it exceeds a certain limit (overcurrent protection). The Fuses work by increasing its resistance as its temperature rises due to the current increase. The trip current ranges from 14 mA to 50 A with the Time to trip ranging from 8 ms to 90 s. PTC = Positive Temperature Coefficient.

---

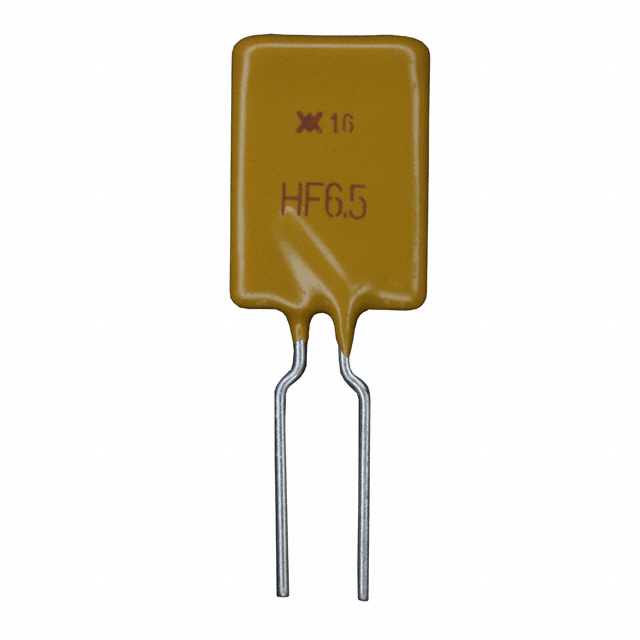

Littelfuse Inc. RHEF650-2

PTC RESET FUSE 16V 6.5A RADIAL

0.2

Schurter Inc. PFRA.700

PTC RESET FUSE 30V 7A RADIAL

0.2

Schurter Inc. PFRA.400.2

PTC RESET FUSE 30V 4A RADIAL

0.2

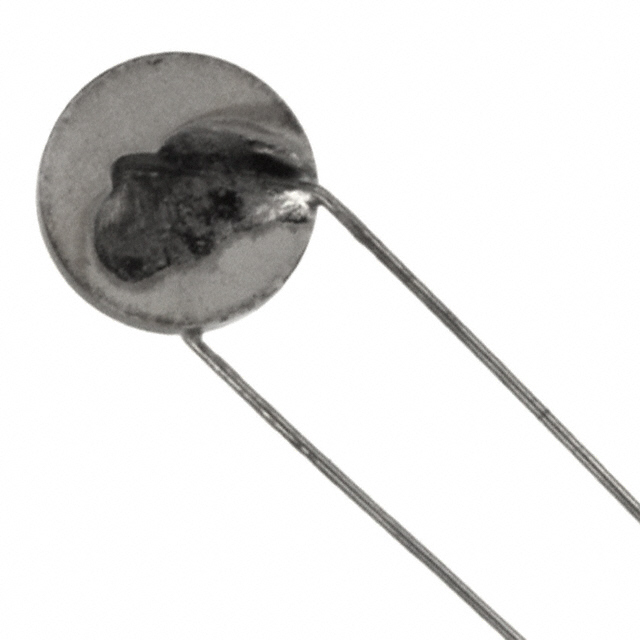

Amphenol Advanced Sensors RL3006-50-40-25-PTO

PTC RESET FUSE 25V RADIAL

0.2

Amphenol Advanced Sensors RL3006-50-30-25-PTO

PTC RESET FUSE 25V RADIAL

0.2

Littelfuse Inc. MINISMD075-2

PTC RESET FUSE 750MA 1812

0.2

Amphenol Advanced Sensors RL5506-5.0-110-50-PTF

PTC RESET FUSE 50V 390MA RADIAL

0.2

Amphenol Advanced Sensors RL3005-10-110-12-PTF

PTC RESET FUSE 12V 190MA RADIAL

0.2
