PTC Resettable Fuses

PTC Resettable Fuses are designed to stop current flow when it exceeds a certain limit (overcurrent protection). The Fuses work by increasing its resistance as its temperature rises due to the current increase. The trip current ranges from 14 mA to 50 A with the Time to trip ranging from 8 ms to 90 s. PTC = Positive Temperature Coefficient.

---

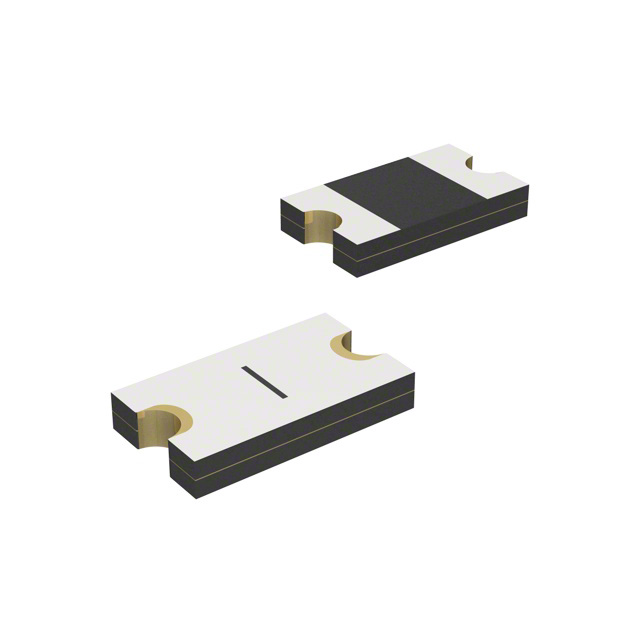

Bourns, Inc. MF-FSMF035X-2

PTC RESET FUSE 6V 350MA 0603

0

Bourns, Inc. MF-FSMF020X-2

PTC RESET FUSE 9V 200MA 0603

0

Littelfuse Inc. 2920L250DR

PTC RESET FUSE 15V 2.5A 2920

0

Littelfuse Inc. 2920L185DR

PTC RESET FUSE 33V 1.85A 2920

0

Littelfuse Inc. 0805L010YR

PTC RESET FUSE 15V 100MA 0805

0

Littelfuse Inc. 0805L035YR

PTC RESET FUSE 6V 350MA 0805

0

Littelfuse Inc. 2920L075/60MR

PTC RESET FUSE 60V 750MA 2920

0

Murata Electronics North America PRG21BC4R7MM1RA

PTC RESET FUSE 30V 155MA 0805

0
