PTC Resettable Fuses

PTC Resettable Fuses are designed to stop current flow when it exceeds a certain limit (overcurrent protection). The Fuses work by increasing its resistance as its temperature rises due to the current increase. The trip current ranges from 14 mA to 50 A with the Time to trip ranging from 8 ms to 90 s. PTC = Positive Temperature Coefficient.

---

Littelfuse Inc. 60R030XPR

PTC RESET FUSE 60V 300MA RADIAL

0.5

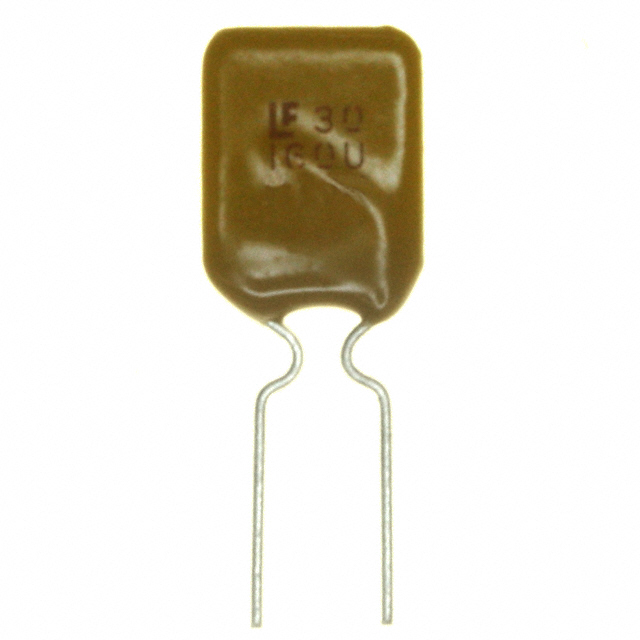

Littelfuse Inc. 30R160UPR

PTC RESET FUSE 30V 1.6A RADIAL

0.24

Littelfuse Inc. 30R185UPR

PTC RESET FUSE 30V 1.85A RADIAL

0.6

Littelfuse Inc. RHEF200-2

PTC RESET FUSE 16V 2A RADIAL

0.7

Littelfuse Inc. NANOSMD175LR-2

PTC RESET FUSE 6V 1.75A 1206

0.3

Littelfuse Inc. TRF250-120U-2

PTC RESET FUSE 60V 120MA RADIAL

0.83

Littelfuse Inc. ASMD050F-2

PTC RESET FUSE 60V 370MA 2SMD

0.85

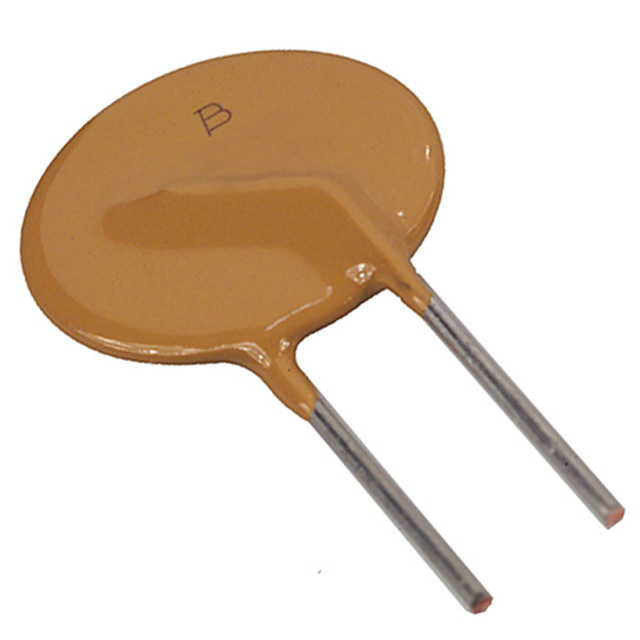

Bourns, Inc. MF-RX300-2

PTC RESET FUSE 60V 3A RADIAL

0.38
