Shunts, Jumpers

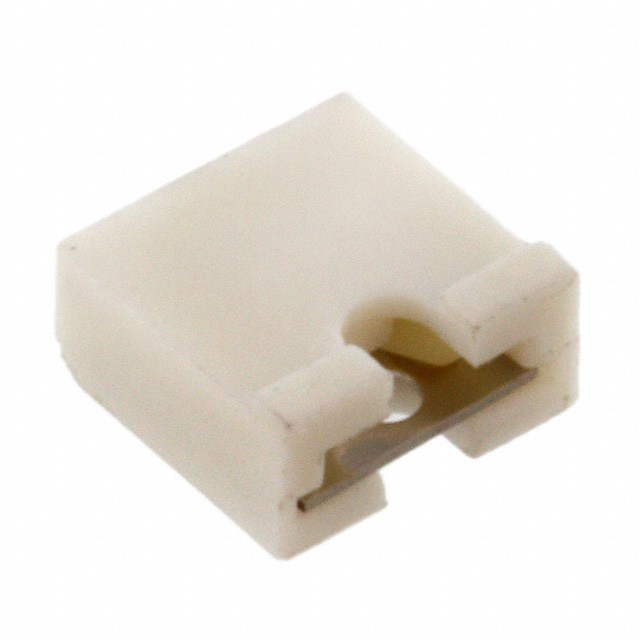

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).

---

Aries Electronics LM-40-10

SP200-SJ200 .040 SHRTNG PLG/JACK

0.66

Samtec, Inc. BTMM-103-01-T-D

.020 SQ. RA POST ASSEMBLY

0.62

Samtec, Inc. BTMM-105-01-T-S

.020 SQ. RA POST ASSEMBLY

0.6

Samtec, Inc. BTMM-102-01-T-S-002

.020 SQ. RA POST ASSEMBLY

0.59

Amphenol ICC (FCI) 69146-208LF

JUMPER LOW PRO SR MULTI

0.58

Molex 0900590012

CONN SHUNT FEMALE 2POS SMD

0.58

TE Connectivity AMP Connectors 8136-650P3

CONN PIN JUMPER TIN

0.56

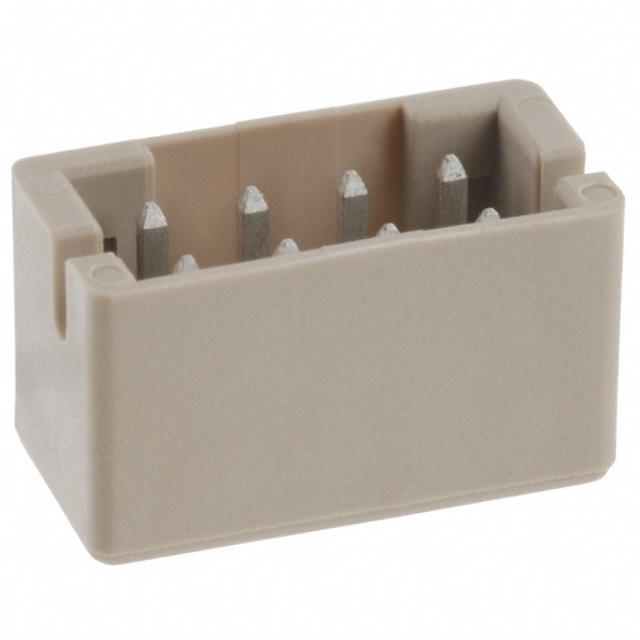

Hirose Electric Co Ltd DF11-8DP-SP2(05)

CONN SHORTING JUMPER 8POS 2MM

0.55
