Shunts, Jumpers

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).

---

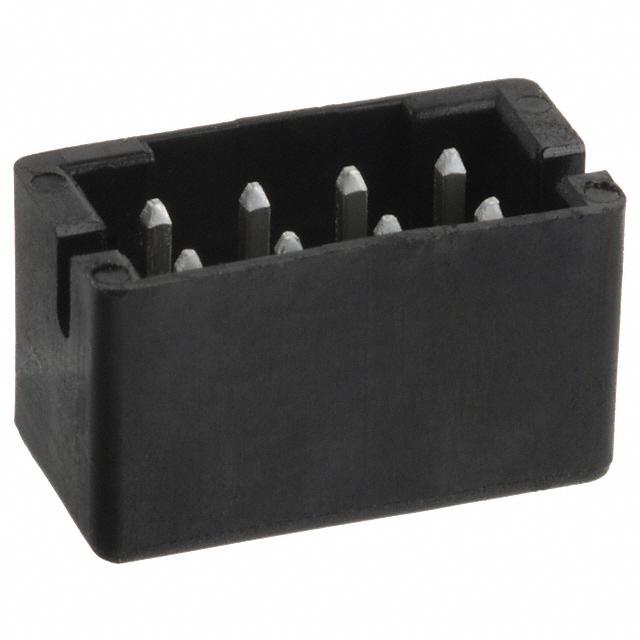

Hirose Electric Co Ltd DF11-8DP-SP1(05)

CONN SHORTING JUMPER 8POS 2MM

0.38

Kycon, Inc. SX4060

MULTIPLE POSITION SHUNT - 2X6 RO

0.36

Hirose Electric Co Ltd DF11-6DP-SP1(05)

CONN SHORTING JUMPER 6POS 2MM

0.36

Amphenol ICC (FCI) 69145-108

JUMPER LOW PRO DR MULTI

0.36

Amphenol ICC (FCI) 63429-212LF

CONN SHUNT

0.35

Sullins Connector Solutions QPC02RXGN-RC

CONN JUMPER SHORTING 13POS

0.35

Kycon, Inc. SX4050

MULTIPLE POSITION SHUNT - 2X5 RO

0.35

Hirose Electric Co Ltd DF11-4DP-SP1(05)

CONN SHORTING JUMPER 4POS 2MM

0.33
