Shunts, Jumpers

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).

---

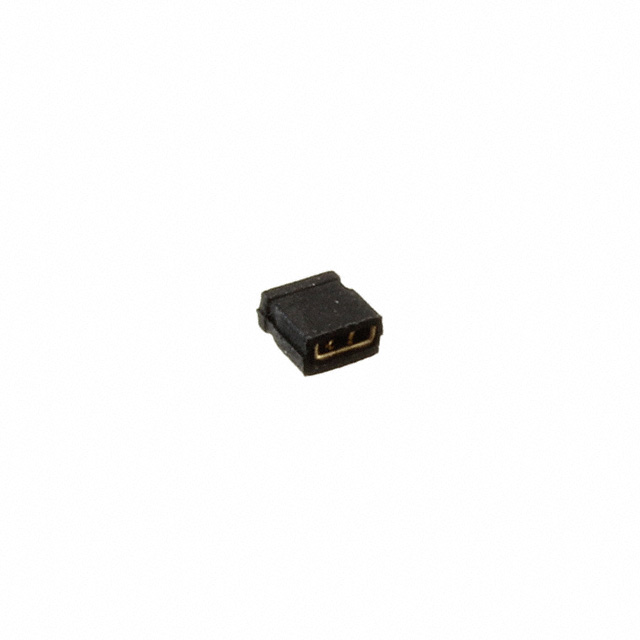

Adam Tech HMSC-G

SHUNT 1.27MM PITCH

0.15

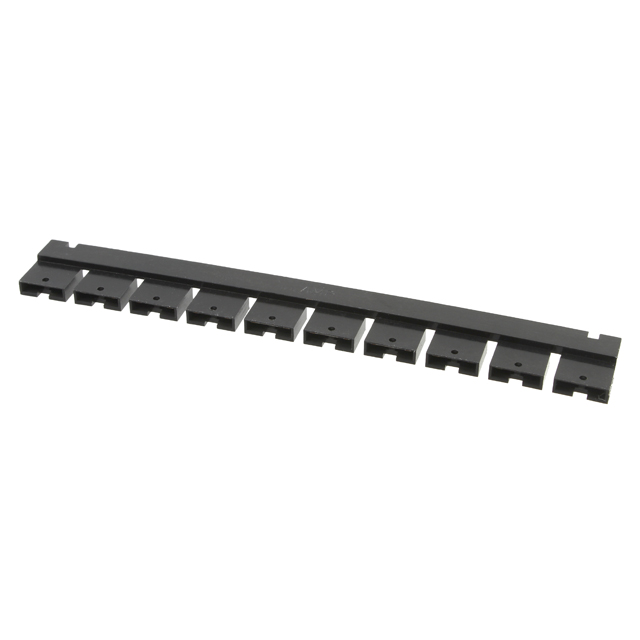

TE Connectivity AMP Connectors 531230-1

SHUNT .200 C/L LP 2 POS SN

0.74

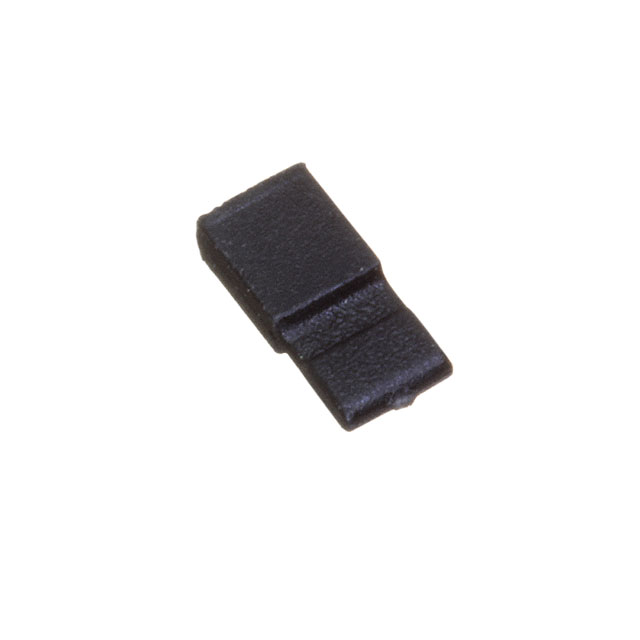

Samtec, Inc. SNT-100-YW-T

SHUNT JUMPERS

0.24

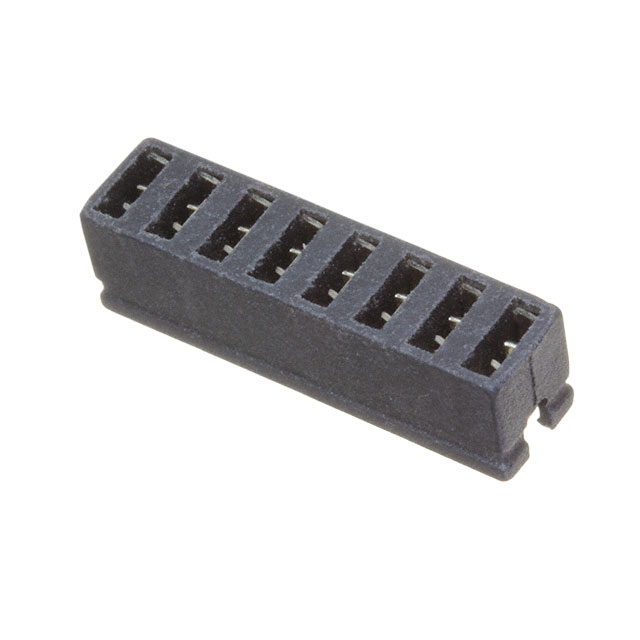

Wurth Electronics Inc. 60910813421

WR-PHD_2.54MM_JUMPER_BLACK W/ TE

0.74

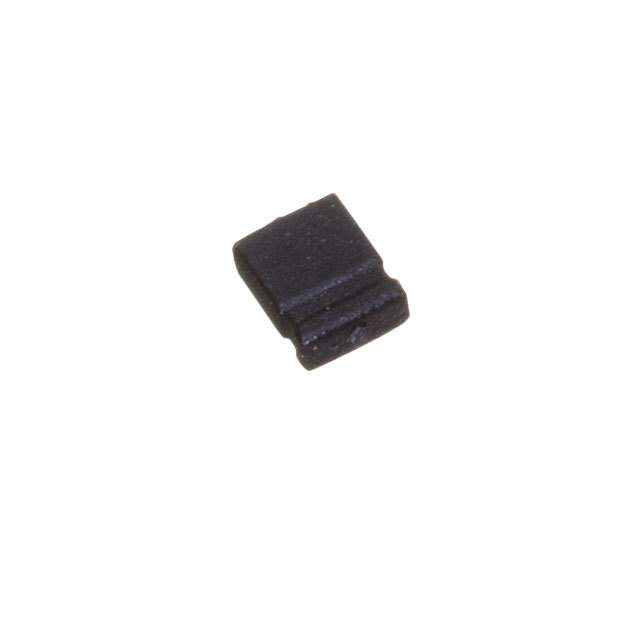

Wurth Electronics Inc. 62200213421

WR-PHD_1.27MM_JUMPER_BLACK_GOLD

0.62

Wurth Electronics Inc. 622002115121

WR-PHD_1.27MM_JUMPER_BLACK W/ PU

0.62

Wurth Electronics Inc. 60910613421

WR-PHD_2.54MM_JUMPER_BLACK W/ TE

0.59

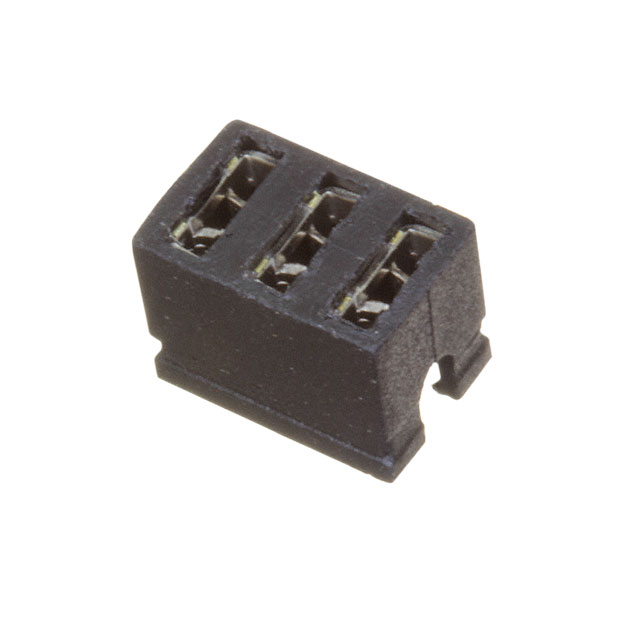

Wurth Electronics Inc. 60910313421

WR-PHD_2.54MM_JUMPER_BLACK W/ TE

0.44
